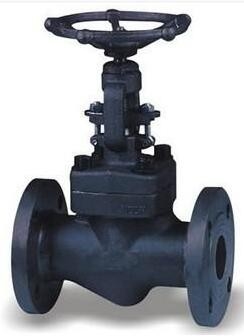

25A 10kg / cm2 x 127L Flanged Globe Valve STS304 HAND WHEEL

25A 10kg / cm2 x 127L Flanged Globe Valve STS304 HAND WHEEL
25A 10kg / cm2 x 127L Flanged Globe Valve STS304 HAND WHEEL 25A 10kg / cm2 x 127L Flanged Globe Valve STS304 HAND WHEEL

Large Image :  25A 10kg / cm2 x 127L Flanged Globe Valve STS304 HAND WHEEL

Product Details:
Place of Origin: Shanghai , China
Brand Name: OEM
Certification: ISO 9001/ API 6D
Model Number: J41
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: Usually packing by plywood case suit for sea delivery
Delivery Time: 1usually within 35 days after received your payment
Payment Terms: T/T advance or L/C at sight
Supply Ability: 90,000pcs per month
Detailed Product Description
Product Name: Globe Valve Application: Oil, Gas, Water, Steam Etc.,
Size: DN15 ~DN50 Pressure: PN16~160/ 150lbs~2500lbs/JIS 10K/20K
Standard: API 6D/ ANSI 16.5 B/ JIS 20K/JIS 10K Temperature: -29~425 C
Body: Cast Steel/WCB/WC6/stainless Steel Stem: Stainless Steel/ 2Cr13
Connect: Flange
High Light:

cast steel globe valve

,

2 inch globe valve

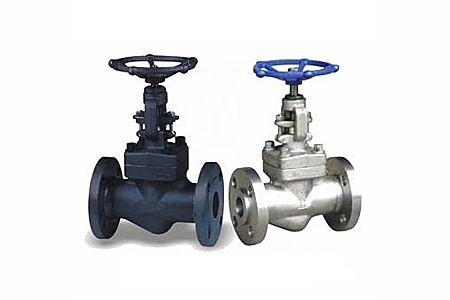

25A 10kg / cm2 x 127L Flanged Globe Valve STS304 HAND WHEEL





Forged Steel Integarl Flanged Valve



Brief introduction:

Integral flanged valves are available in three bonnet designs.



The first design is the Bolted Bonnet, with male-female joint, spiral wound gasket, made in F304L/graphite.Ring joint gasket are also available on request.



The second design is the welded bonnet, with a threaded and seal welded joint. On request a full pen- extraction strength welded joint is available.



The third design is the pressure seal bonnet, with a threaded and pressure seal joint. Integral Flanged end valves are available in gate, globe, piston, check, and swing check design configurations.



Technical Specification



*  Integral flange valves conform to API 602,and ANSI B16.34.


*  Each is tested according to API 598, and marking is per MSS SP-25.



*  Full Port and Conventional Port


*  Face to face according t ANSI B16.10


*  Flanges according to ANSI B16.5


*  Pressure seal bonnet


*  Outside Screw and Yoke (OS & Y)


*  Two piece self-aligning packing gland


*  Integral backseat


*  Integral body flanges


*  Butt Welded Ends to ASME B16.25


*  RTJ bonnet gasket ring joint type


*  Bolted bonnet with spiral wound gasket, threaded and seal welded bonnet or threaded and pressure seal bonnet



25A 10kg / cm2 x 127L Flanged Globe Valve STS304 HAND WHEEL 0



Standard Material Specification



NO. Part Name CS to ASTM AS to ASTM SS to ASTM
Type A105 Type F22 Type F304(L) Type F316(L)
1 Body A105 A182 F22 A182 F304(L) A182 F316(L)
2 Stem Ring A276 420 A276 304 A276 304(L) A276 316(L)
3 Wedge A276 410 & 430 A182 F304 A182 F304(L) A182 F316(L)
4 Stem A182 F6 A182 F304 A182 F304(L) A182 F316(L)
5 Gasket Corrugated SS+ graphite SS+PTFE
6 Bonnet A105 A182 F22 A182 F304(L) A182 F316(l)
7 Bonnet Bolt A193 B7 A193 B16 A193 B8 A193 B8M
8 Pin A276 420 A276 304
9 Gland A276 410 A182 F304(L) A182 F316(L)
10 Gland Eyebolt A193 B7 A193 B16 A193 B8 A193 B8M
11 Gland Flange A105 A182 F11 A182 F304(L) A182 F316(L)
12 Gland Nut A194 2H A194 4 A194 8 A194 8M
13 Yoke Nut A276 410
14 H.W.Lock Nut A194 2H A194 4 A194 8 A194 8M
15 Nameplate SS
16 Hand wheel A197
17 Lubricated Gasket A473 431
18 Stem Packing Flexible Graphite PTFE
Suitable Medium Water, oil, gas etc., Water, oil, gas etc., HNO3,CH3OOH etc
Suitable Temperature -29℃~425℃ -29℃~550℃ -29℃~180℃



Dimension (mm) and Weight (Kg)



NPS 1/2" 3/4" 1" 11/4" 11/2" 2"
L(RF)
L1(BW)
150Lb 108 117 127 140 165 203
300Lb 140 152 165 178 190 216
600Lb 165 190 216 229 241 292
H 150Lb~300Lb 158 169 197 236 246 283
600Lb 169 197 236 246 283 320
W 100 100 125 160 160 180
Weight 150Lb RF 4.5 5.2 8.2 11.5 12.5 20.3
BW 2.8 3.3 5.4 7.1 8.2 12.5
300Lb RF 4.8 6.2 9.3 14 15.5 23.4
BW 3.5 4.4 6.8 8.1 9.2 15.4
600Lb RF 5.9 7.4 10.4 16.2 17.5 28.3
BW 4.5 5.1 8.2 10.5 12.4 20.1



Flanged End Globe Valve 900Lb1500Lb



NPS 1/2" 3/4" 1" 11/2" 11/4" 2"
L(RTJ) 900Lb~1500Lb 216 229 254 279 305 371
L1(BW) 900Lb~1500Lb 216 229 254 279 305 368
H(OPEN) 197 197 236 246 283 330
W 125 125 160 160 180 200
Weight RTJ 7.2 11.5 15.6 16.2 22.6 32.8
BW 5.2 9.3 12.4 13.8 18.9 27.5



Flanged End Pressure-seal Globe Valve 900Lb2500Lb



NPS 1/2" 3/4" 1" 11/4" 11/2" 2"
L(RTJ) 900Lb~1500Lb 216 229 254 279 305 368
2500Lb 264 273 308 349 384 451
H(OPEN) 900Lb~1500Lb 216 250 270 320 250 445
2500Lb 321 321 321 373 406 495
W 160 160 180 200 250 280
Weight 900Lb~1500Lb 19.6 21.5 25.7 37.8 48.5 99.8
2500Lb 21.5 24.7 30.4 48.1 58.1 130.0





The globe valve is designed reference to advanced internal and international standard.Adopting different material, the valve may works with different medium, such as water,oil,gas,steam,carbamide and other medium.



selection  of  possible  applications:
  (industry)  (power  station)
(flue  gas  puerification  plant)  (gas  supply)
   (vacuum  facilities)  (ammonia)
   (hot  water)  (cllling&freezing  systme)
   (heating  technology)  (steam  system)





Features
Outside Screw and Yoke (OS & Y), Rising Stem
Bolted Bonnet
Conic Disc
Extended Bonnet for Cryogenic Services
Impact hand wheel optional
Gear Optional
Specifications
Design: ASME B16.34/BS 1873
Face to Face: ASME B16.10
End to End: ASME B16.10
End Flange: ASME B16.5
BW End: ASME B16.25
Test: API 598
Special: NACE MR-01-75

Notes:The size of serial,valve connecting flange can be design according to customers reguirment.



Products performance specification



Parts Materials
Body ASTM A216 GR.WCB
Seat Ring ASTM A105 + Stellite Faced
Disc ASTM A105 + 13Cr Faced
Disc Thrust Plate ASTM A276 Type 420
Disc Nut ASTM A276 Type 410
Stem ASTM A182 GR.F6
Bonnet Bolt Nuts ASTM A194 GR.2H
Bonnet Bolts ASTM A193 GR.B7
Gasket Soft Iron + Graphite
Backseat Bushing ASTM A276 Type 410
Stem Packing Braided Graphite & Die formed Graphite Ring
Bonnet ASTM A216 GR.WCB
Eyebolt Pins Carbon Steel
Gland ASTM A276 Type 410
Gland Flange ASTM A216 GR.WCB
Gland Eye Bolts ASTM A307 GR.B
Eyebolt Nuts ASTM A194 GR.2H
Yoke Bush ASTM A439 GR.D-2
Screw Carbon Steel
Hand Wheel Ductile Iron
Hand Wheel Nut ASTM A194 GR.2H
Washer Carbon Steel
Yoke ASTM A216 GR.WCB
Yoke Pan Bolt Nuts ASTM A194 GR.2H
Yoke Pan Bolt ASTM A193 GR.B7
Bearing Steel
Lantern Ring On Request ASTM A276 Type 410

25A 10kg / cm2 x 127L Flanged Globe Valve STS304 HAND WHEEL 1      25A 10kg / cm2 x 127L Flanged Globe Valve STS304 HAND WHEEL 2 25A 10kg / cm2 x 127L Flanged Globe Valve STS304 HAND WHEEL 3



Main Dimensions



ASME Pressure Class 150 Lb-Dimensions and Weights


NPS in 2 2.5 3 4 5 6 8 10 12 14 16
d mm 51 64 76 102 127 152 203 254 305 337 387
L-L1 in 8 8.5 9.5 11.5 14 16 19.5 24.5 27.5 31 36
(RF-BW) mm 203 216 241 292 356 406 495 622 698 787 914
L2 in 8.5 9 10 12 14.5 16.5 20 25 28 31.5 36.5
(RTJ) mm 216 229 254 305 368 419 508 635 711 800 927
H in 13.43 14.45 14.76 19.02 21.14 20.35 23.23 29.69 37.05 42.72 38.03
(open) mm 341 367 375 483 537 517 590 754 941 1085 966
W in 7.87 9.84 9.84 11.81 11.81 13.78 15.75 17.72 25.2 25.2 18.11
mm 200 250 250 300 300 350 400 450 640 640 460
WT BF 22 29 42 64 77 105 154 288 507 617 810
(Kg) BW 19 25 34 49 65 82 131 249 430 580 763



ASME Pressure Class 300 Lb-Dimensions and Weights

NPS in 2 2.5 3 4 5 6 8 10 12
d mm 51 64 76 102 127 152 203 254 305
L-L1 in 10.5 11.5 12.5 14 15.75 17.5 22 24.5 28
(RF-BW) mm 267 292 318 356 400 444 559 622 711
L2 in 11.12 12.12 13.12 14.62 16.37 18.12 22.62 25.12 28.62
(RTJ) mm 283 308 333 371 416 460 575 638 727
H in 13.74 14.8 16.93 19.13 22.05 24.33 36.89 37.36 39.17
(open) mm 349 376 430 486 560 618 937 949 995
W in 7.87 9.84 9.84 13.78 15.75 17.72 2.05 25.2 18.11
mm 200 250 250 350 400 450 560 640 460
WT BF 31 43 57 86 130 168 280 385 724
(Kg) BW 26 38 44 68 110 138 228 329 618



ASME Pressure Class 300 Lb-Dimensions and Weights



NPS in 2 2.5 3 4 6 8 10 12
d mm 51 64 76 102 152 200 248 298
L-L1 in 11.5 13 14 17 22 26 31 33
(RF-BW) mm 292 330 356 432 559 660 787 838
L2 in 11.62 13.12 14.12 17.12 22.12 26.12 31.12 33.12
(RTJ) mm 295 333 359 435 562 664 791 841
H in 16.73 19.76 20.51 24.41 34.88 36.69 40.94 50.39
(open) mm 425 502 521 620 886 932 1040 1280
W in 9.84 11.81 13.78 17.72 22.05 18.11 24.02 29.92
mm 250 300 350 450 560 460 610 760
WT BF 39 58 73 120 327 482 700 900
(Kg) BW 33 48 61 95 261 385 588 795







25A 10kg / cm2 x 127L Flanged Globe Valve STS304 HAND WHEEL 4









Brief introduction:

The globe valve is designed reference to advanced internal and international standard. The body adopt

 sphere configuration, and it also has the feature of good appearance, nice function and superior quality.



Apply from CLASS150 to CLASS1500, and -29℃~425℃(steel), -40℃~550℃(stainless steel).



Using different material, the valve may works with different medium, such as water,oil,gas,steam,carbamide

 and other medium.



Features:

- Back seal

Back seal design to ensure dependable packing and sealing when valve is fully opened.(Replacement of packing under pressure is not recommended)



- Resist friction

Valve disc is given enough intensity and rigidity. Disc sealing surface may be built-up welded with satellite

 alloy inlaid or other material responding to the users’ requests .



- Precise design:

Design the body and bonnet according to precise calculation. Body and bonnet have high strength ,

rigid and flow ability .



Mail part & material



Item Name of parts

material

1

Body

WCB, CF8, CF8M

2

Seat

2Cr13,25+ satellite

3

Disc

2Cr13, 304, 25+satelite

4

Stem

2Cr13, 304, 304L

5

Gasket

Graphite+304, Graphite+08 steel

6

Bonnet

WCB,CF8,CF8M

7

Packing

Graphite,PTFE

8

Hand wheel

HT250,QT450







Technical Specification

-Nominal diameter: 2”-12”

-Applicable Temperature: -29℃~425℃(steel) -40℃~550℃

(stainless steel)

-Nominal pressure: 150Lb 300Lb 600Lb 900Lb 1500Lb

-Applicable Medium: water ,gas,oil,and other causticity medium.

Applications Standard

-Manufacture standard : ANSI B16.34

-Face to face dimension: ANSI B 16.10

-Flange dimension: ANSI B 16.5

-Test: API 598







Description:



Main external and connection dimension



25A 10kg / cm2 x 127L Flanged Globe Valve STS304 HAND WHEEL 5



CLASS150

size(in)

2"

2-1/2"

3"

4"

5"

6"

8"

10"

12"

L,L1-RF.BW(mm)

203

216

214

292

330

356

495

622

698

L2-RTJ(mm)

216

229

254

305

343

368

508

635

711

H(mm)

330

390

410

475

540

585

725

825

940

K(mm)

200

250

250

300

350

350

450

500

600

Weight(Kg)

23

29

40

59

95

115

178

268

385





CLASS300

size(in)

2"

2-1/2"

3"

4"

5"

6"

8"

10"

12"

L,L1-RF.BW(mm)

267

292

318

355

400

440

533

622

711

L2-RTJ(mm)

283

308

333

371

416

460

549

638

727

H(mm)

350

425

485

520

565

655

825

920

1155

K(mm)

200

250

300

300

350

350

500

600

700

Weight(Kg)

30

45

60

83

135

162

265

375

525





CLASS600

size(in)

2"

2-1/2"

3"

4"

5"

6"

8"

10"

L,L1-RF.BW(mm)

292

330

356

432

508

559

660

787

L2-RTJ(mm)

295

333

359

435

511

562

664

791

H(mm)

420

490

550

590

620

700

950

1140

K(mm)

250

300

300

350

500

500

600

600

Weight(Kg)

39

61

76

122

210

245

447

692



CLASS900



size(in)

2"

2-1/2"

3"

4"

5"

6"

8"



L,L1-RF.BW(mm)

368

419

381

457

559

610

737



L2-RTJ(mm)

371

422

384

460

562

613

740



H(mm)

495

540

600

655

670

780

1050



K(mm)

300

350

350

500

500

350*

350*



Weight(Kg)

96

79

117

178

305

355

730



Note: Use "*", mean have fixed the gear box.







CLASS1500

size(in)

2"

2-1/2"

3"

4"

6"

L,L1-RF.BW(mm)

368

419

470

546

705

L2-RTJ(mm)

371

422

473

549

711

H(mm)

550

582

625

750

925

K(mm)

300

350

400

450

600

Weight(Kg)

116

125

145

210

475







Contact Details
Shanghai kangquan Valve Co. Ltd.

Contact Person: Mr. Steve

Tel: +8613818096733

Send your inquiry directly to us (0 / 3000)
