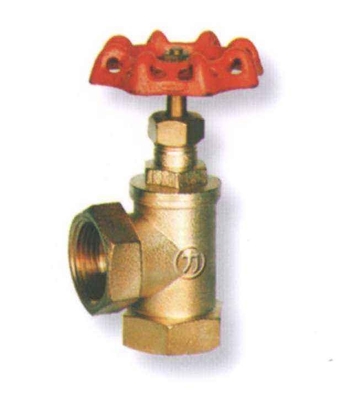

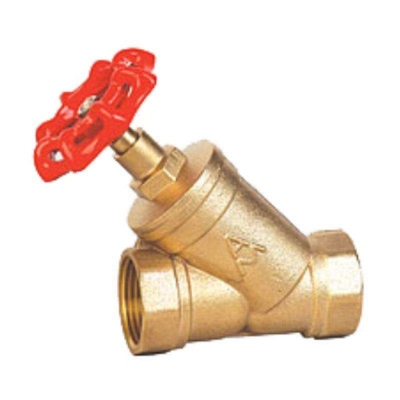

Screwed Size Dn50 Pn25 Copper Globe Valve With Femle Screwed Ends 1/4" - 2"

Screwed Size Dn50 Pn25 Copper Globe Valve With Femle Screwed Ends 1/4" - 2"

    • Screwed Size Dn50 Pn25 Copper Globe Valve With Femle Screwed Ends 1/4" - 2"
    • Screwed Size Dn50 Pn25 Copper Globe Valve With Femle Screwed Ends 1/4" - 2"
  • Screwed Size Dn50 Pn25 Copper Globe Valve With Femle Screwed Ends 1/4" - 2"

    Product Details:

    Place of Origin: Shanghai , China
    Brand Name: OEM
    Certification: ISO 9001/ API 6D
    Model Number: J11T-25

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: negotiation
    Packaging Details: Usually packing by plywood case suit for sea delivery
    Delivery Time: 1usually within 35 days after received your payment
    Payment Terms: T/T advance or L/C at sight
    Supply Ability: 90,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Copper Globe Valve Application: Oil, Gas, Water, Steam Etc.,
    DN: 1/4"~2" Pressure: PN16 /150lbs /JIS 10K
    Standard: API 6D/ ANSI 16.5 B/ JIS 20K/JIS 10K Temperature: -10~120 C
    Body: Copper Stem: Copper

    Screwed Size DN50 PN25 Globe Valve Femle Screwed Ends Bronze Body And Trim


    VLV,GLB,SCREWED, SIZE DN50 PN25 GLOBE VALVE,FEMALE SCREWED ENDS,

    BRONZE BODY AND TRIM

    SIZE :DN 50

    RATING:PN25

    DESIGN SPEC, :BS5154

    SCREWED BONNET, :INTEGRAL OR REMOVABLE SEAT

    INSIDE SCREW, :RISING STEM

    ENDS SCREWED :API5B

    BODY,BONNET AND TRIM :ASTM B62

    COPPER ALLOYUNS C83600

    STEM AND GLAND :ASTM B16

    COPPER ALLOY UNS C36000

    BODY LEGIBLYDIESTAMPED :BC77

    ADDITIONAL REQUIREMENTS

    REFER SPECIFICATION :T-l.763.404



    Screwed Size Dn50 Pn25 Copper Globe Valve With Femle Screwed Ends 1/4" - 2"















    GLOBE VALVE, FLANGED TO A.S.A B16.5 SUITABLE FOR SOUR GAS SERVICE



    selection  of  possible  applications:
      (industry)  (power  station)
    (flue  gas  puerification  plant)  (gas  supply)
       (vacuum  facilities)  (ammonia)
       (hot  water)  (cllling&freezing  systme)
       (heating  technology)  (steam  system)



    The globe valve is designed reference to advanced internal and international standard.Adopting different material, the valve may works with different medium, such as water,oil,gas,steam,carbamide and other medium.







    Features
    Outside Screw and Yoke (OS & Y), Rising Stem
    Bolted Bonnet
    Conic Disc
    Extended Bonnet for Cryogenic Services
    Impact hand wheel optional
    Gear Optional
    Specifications
    Design: ASME B16.34/BS 1873
    Face to Face: ASME B16.10
    End to End: ASME B16.10
    End Flange: ASME B16.5
    BW End: ASME B16.25
    Test: API 598
    Special: NACE MR-01-75

    Notes:The size of serial,valve connecting flange can be design according to customers reguirment.



    Products performance specification



    Parts Materials
    Body ASTM A216 GR.WCB
    Seat Ring ASTM A105 + Stellite Faced
    Disc ASTM A105 + 13Cr Faced
    Disc Thrust Plate ASTM A276 Type 420
    Disc Nut ASTM A276 Type 410
    Stem ASTM A182 GR.F6
    Bonnet Bolt Nuts ASTM A194 GR.2H
    Bonnet Bolts ASTM A193 GR.B7
    Gasket Soft Iron + Graphite
    Backseat Bushing ASTM A276 Type 410
    Stem Packing Braided Graphite & Die formed Graphite Ring
    Bonnet ASTM A216 GR.WCB
    Eyebolt Pins Carbon Steel
    Gland ASTM A276 Type 410
    Gland Flange ASTM A216 GR.WCB
    Gland Eye Bolts ASTM A307 GR.B
    Eyebolt Nuts ASTM A194 GR.2H
    Yoke Bush ASTM A439 GR.D-2
    Screw Carbon Steel
    Hand Wheel Ductile Iron
    Hand Wheel Nut ASTM A194 GR.2H
    Washer Carbon Steel
    Yoke ASTM A216 GR.WCB
    Yoke Pan Bolt Nuts ASTM A194 GR.2H
    Yoke Pan Bolt ASTM A193 GR.B7
    Bearing Steel
    Lantern Ring On Request ASTM A276 Type 410

    Screwed Size Dn50 Pn25 Copper Globe Valve With Femle Screwed Ends 1/4" - 2"      Screwed Size Dn50 Pn25 Copper Globe Valve With Femle Screwed Ends 1/4" - 2" Screwed Size Dn50 Pn25 Copper Globe Valve With Femle Screwed Ends 1/4" - 2"



    Main Dimensions



    ASME Pressure Class 150 Lb-Dimensions and Weights


    NPS in 2 2.5 3 4 5 6 8 10 12 14 16
    d mm 51 64 76 102 127 152 203 254 305 337 387
    L-L1 in 8 8.5 9.5 11.5 14 16 19.5 24.5 27.5 31 36
    (RF-BW) mm 203 216 241 292 356 406 495 622 698 787 914
    L2 in 8.5 9 10 12 14.5 16.5 20 25 28 31.5 36.5
    (RTJ) mm 216 229 254 305 368 419 508 635 711 800 927
    H in 13.43 14.45 14.76 19.02 21.14 20.35 23.23 29.69 37.05 42.72 38.03
    (open) mm 341 367 375 483 537 517 590 754 941 1085 966
    W in 7.87 9.84 9.84 11.81 11.81 13.78 15.75 17.72 25.2 25.2 18.11
    mm 200 250 250 300 300 350 400 450 640 640 460
    WT BF 22 29 42 64 77 105 154 288 507 617 810
    (Kg) BW 19 25 34 49 65 82 131 249 430 580 763



    ASME Pressure Class 300 Lb-Dimensions and Weights

    NPS in 2 2.5 3 4 5 6 8 10 12
    d mm 51 64 76 102 127 152 203 254 305
    L-L1 in 10.5 11.5 12.5 14 15.75 17.5 22 24.5 28
    (RF-BW) mm 267 292 318 356 400 444 559 622 711
    L2 in 11.12 12.12 13.12 14.62 16.37 18.12 22.62 25.12 28.62
    (RTJ) mm 283 308 333 371 416 460 575 638 727
    H in 13.74 14.8 16.93 19.13 22.05 24.33 36.89 37.36 39.17
    (open) mm 349 376 430 486 560 618 937 949 995
    W in 7.87 9.84 9.84 13.78 15.75 17.72 2.05 25.2 18.11
    mm 200 250 250 350 400 450 560 640 460
    WT BF 31 43 57 86 130 168 280 385 724
    (Kg) BW 26 38 44 68 110 138 228 329 618



    ASME Pressure Class 300 Lb-Dimensions and Weights



    NPS in 2 2.5 3 4 6 8 10 12
    d mm 51 64 76 102 152 200 248 298
    L-L1 in 11.5 13 14 17 22 26 31 33
    (RF-BW) mm 292 330 356 432 559 660 787 838
    L2 in 11.62 13.12 14.12 17.12 22.12 26.12 31.12 33.12
    (RTJ) mm 295 333 359 435 562 664 791 841
    H in 16.73 19.76 20.51 24.41 34.88 36.69 40.94 50.39
    (open) mm 425 502 521 620 886 932 1040 1280
    W in 9.84 11.81 13.78 17.72 22.05 18.11 24.02 29.92
    mm 250 300 350 450 560 460 610 760
    WT BF 39 58 73 120 327 482 700 900
    (Kg) BW 33 48 61 95 261 385 588 795







    Screwed Size Dn50 Pn25 Copper Globe Valve With Femle Screwed Ends 1/4" - 2"









    Brief introduction:

    The globe valve is designed reference to advanced internal and international standard. The body adopt

     sphere configuration, and it also has the feature of good appearance, nice function and superior quality.



    Apply from CLASS150 to CLASS1500, and -29℃~425℃(steel), -40℃~550℃(stainless steel).



    Using different material, the valve may works with different medium, such as water,oil,gas,steam,carbamide and other medium.



    Features:

    - Back seal

    Back seal design to ensure dependable packing and sealing when valve is fully opened.(Replacement of packing under pressure is not recommended)



    - Resist friction

    Valve disc is given enough intensity and rigidity. Disc sealing surface may be built-up welded with satellite alloy inlaid or other material responding to the users’ requests .



    - Precise design:

    Design the body and bonnet according to precise calculation. Body and bonnet have high strength ,

    rigid and flow ability .



    Mail part & material



    Item Name of parts

    material

    1

    Body

    WCB, CF8, CF8M

    2

    Seat

    2Cr13,25+ satellite

    3

    Disc

    2Cr13, 304, 25+satelite

    4

    Stem

    2Cr13, 304, 304L

    5

    Gasket

    Graphite+304, Graphite+08 steel

    6

    Bonnet

    WCB,CF8,CF8M

    7

    Packing

    Graphite,PTFE

    8

    Hand wheel

    HT250,QT450







    Technical Specification

    -Nominal diameter: 2”-12”

    -Applicable Temperature: -29℃~425℃(steel) -40℃~550℃

    (stainless steel)

    -Nominal pressure: 150Lb 300Lb 600Lb 900Lb 1500Lb

    -Applicable Medium: water ,gas,oil,and other causticity medium.

    Applications Standard

    -Manufacture standard : ANSI B16.34

    -Face to face dimension: ANSI B 16.10

    -Flange dimension: ANSI B 16.5

    -Test: API 598







    Description:



    Main external and connection dimension



    Screwed Size Dn50 Pn25 Copper Globe Valve With Femle Screwed Ends 1/4" - 2"



    CLASS150

    size(in)

    2"

    2-1/2"

    3"

    4"

    5"

    6"

    8"

    10"

    12"

    L,L1-RF.BW(mm)

    203

    216

    214

    292

    330

    356

    495

    622

    698

    L2-RTJ(mm)

    216

    229

    254

    305

    343

    368

    508

    635

    711

    H(mm)

    330

    390

    410

    475

    540

    585

    725

    825

    940

    K(mm)

    200

    250

    250

    300

    350

    350

    450

    500

    600

    Weight(Kg)

    23

    29

    40

    59

    95

    115

    178

    268

    385





    CLASS300

    size(in)

    2"

    2-1/2"

    3"

    4"

    5"

    6"

    8"

    10"

    12"

    L,L1-RF.BW(mm)

    267

    292

    318

    355

    400

    440

    533

    622

    711

    L2-RTJ(mm)

    283

    308

    333

    371

    416

    460

    549

    638

    727

    H(mm)

    350

    425

    485

    520

    565

    655

    825

    920

    1155

    K(mm)

    200

    250

    300

    300

    350

    350

    500

    600

    700

    Weight(Kg)

    30

    45

    60

    83

    135

    162

    265

    375

    525





    CLASS600

    size(in)

    2"

    2-1/2"

    3"

    4"

    5"

    6"

    8"

    10"

    L,L1-RF.BW(mm)

    292

    330

    356

    432

    508

    559

    660

    787

    L2-RTJ(mm)

    295

    333

    359

    435

    511

    562

    664

    791

    H(mm)

    420

    490

    550

    590

    620

    700

    950

    1140

    K(mm)

    250

    300

    300

    350

    500

    500

    600

    600

    Weight(Kg)

    39

    61

    76

    122

    210

    245

    447

    692



    CLASS900



    size(in)

    2"

    2-1/2"

    3"

    4"

    5"

    6"

    8"



    L,L1-RF.BW(mm)

    368

    419

    381

    457

    559

    610

    737



    L2-RTJ(mm)

    371

    422

    384

    460

    562

    613

    740



    H(mm)

    495

    540

    600

    655

    670

    780

    1050



    K(mm)

    300

    350

    350

    500

    500

    350*

    350*



    Weight(Kg)

    96

    79

    117

    178

    305

    355

    730



    Note: Use "*", mean have fixed the gear box.







    CLASS1500

    size(in)

    2"

    2-1/2"

    3"

    4"

    6"

    L,L1-RF.BW(mm)

    368

    419

    470

    546

    705

    L2-RTJ(mm)

    371

    422

    473

    549

    711

    H(mm)

    550

    582

    625

    750

    925

    K(mm)

    300

    350

    400

    450

    600

    Weight(Kg)

    116

    125

    145

    210

    475
