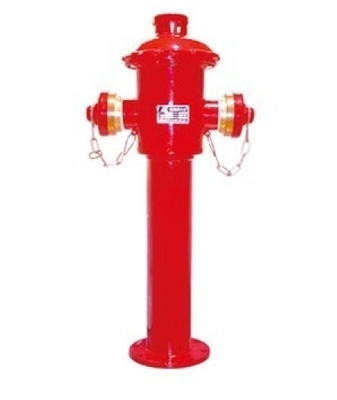

Red Wet Type Fire Hydrant 4" Water Globe Valve 2 Way Pedestal With Control Outlet

Red Wet Type Fire Hydrant 4" Water Globe Valve 2 Way Pedestal With Control Outlet
Red Wet Type Fire Hydrant 4" Water Globe Valve 2 Way Pedestal With Control Outlet Red Wet Type Fire Hydrant 4" Water Globe Valve 2 Way Pedestal With Control Outlet

Large Image :  Red Wet Type Fire Hydrant 4" Water Globe Valve 2 Way Pedestal With Control Outlet

Product Details:
Place of Origin: Shanghai , China
Brand Name: OEM
Certification: ISO 9001/ API 6D
Model Number: Fire work
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: Usually packing by plywood case suit for sea delivery
Delivery Time: 1usually within 35 days after received your payment
Payment Terms: T/T advance or L/C at sight
Supply Ability: 90,000pcs per month
Detailed Product Description
Product Name: Hydraulic Application: Water
Size: DN100 Pressure: PN16
Standard: GB Temperature: -4~80 C
Body: Cast Iron Color: Red
High Light:

cast steel globe valve

,

water globe valve

Red Wet Type Fire Hydrant 4" Water Globe Valve 2 Way Pedestal With Control Outlet









body Material: ductile iron
bonnet: cast iron
DN100 flange end
surface painting







Red Wet Type Fire Hydrant 4" Water Globe Valve 2 Way Pedestal With Control Outlet 0



  Parameters Production Description
  Hydrant type: Underground
  Installation position Vertical
  Installation location

Underground, area of heightened dampness,

water, use of anti-icing liquids

  Labelling

The hydrant should have plaque with following contents;

name and trademark of manufacturer, Standard,

Height of hydrant, production year.

  Instructions

Instruction manual in Russian,

Technical sheet (passport) in Russian.

Documents to be kept in air-tight bag.

  Delivery

Hydrant to be packaged and delivered in assembled state.

 Valve to be in closed position.

  Certification

Manufacturer to have ISO 9001 certification.

Regular testing at place of manufacturer.

  Warranty Minimum 36 months from date of dispatch from factory

Но. Description Parameter
1

Working pressure, kgc/cm2,

 no more than

16
2

Height of hydrant, mm

 (with interval every 250mm)

500-3500
3 Material of main body of hydrant caste iron not less than СЧ15

malleable caste iron not less than EN-GJS-400-15 in accordance

with DIN EN 1563

hot dip galvanized steel on all sides + external

 two-component PU covering

(epoxy powder JSK covering, thickness 250mcm

4 Spindle with square ends Stainless steel
5

Size of square rod (shaft).

Hardness of the square must

be 26/38 HRC

In accordance with GOST 8220-85 for fire hydrants, in accordance

with GOST 7499-71

6 Internal diameter of the body/case, mm 125
9 Valve stroke, mm GOST 8220-85
10

Required number of rotations

of rod to be fully open

GOST 8220-85
11

Hydraulic resistance in the hydrant

H = 1000mm, c2m-5, not more

GOST 8220-85
12

Change in hydraulic resistance every

250mm height, c2 m-5, not more

GOST 8220-85
13 Hardware projects

Stainless steel 12X18H10T (AISI321), carbonised steel with

 thermally diffused zince covering



Part Material
NO. PART NAME Material
1 Body Ductile Iron
2 Bonnet Ductile Iron
3 Bolt Carbon Steel
4 Stem Stainless Steel
5 Disc Ductie Iron coated by NBR
6 London Round Brass



Technical Specification
Nominal Pressure:1.0,1.6MPa
DN:80mm
Work temperature: ≤120℃
Design Standard :BS
Flange Standard :BS EN 1092
OTHER STANDARD ARE AVAILABLE UPON REQUEST.
