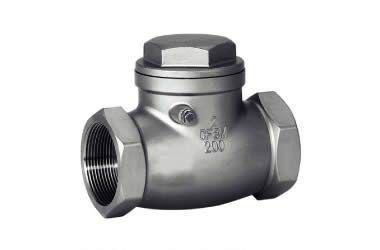

SS304 Or SS316 1 2 3 4 Swing Check Valve For Gas / Steam In High Temperature

SS304 Or SS316 1 2 3 4 Swing Check Valve For Gas / Steam In High Temperature
SS304 Or SS316 1 2 3 4 Swing Check Valve For Gas / Steam In High Temperature SS304 Or SS316 1 2 3 4 Swing Check Valve For Gas / Steam In High Temperature

Large Image :  SS304 Or SS316 1 2 3 4 Swing Check Valve For Gas / Steam In High Temperature

Product Details:
Place of Origin: Shanghai , China
Brand Name: OEM
Certification: ISO 9001/ API 6D
Model Number: H44W / H44
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: Usually packing by plywood case suit for sea delivery
Delivery Time: 1usually within 35 days after received your payment
Payment Terms: T/T advance or L/C at sight
Supply Ability: 90,000pcs per month
Detailed Product Description
Product Name: Swing Check Valve Application: Oil, Gas, Water, Steam Etc.,
Size: DN15 ~DN65 Pressure: PN16~64 / 150lbs
Standard: API 6D/ ANSI 16.5 B/ JIS 20K/JIS 10K Temperature: -29~425 C
Body: Stainless Steel /SS304 /SS316 / SS201 Seat: Stainless Steel /SS304 /SS316 / SS201
High Light:

non return valve

,

ductile iron swing check valve

Stainless Steel Swing Check Valve Thread End BSP /NPT , SS304 Or SS316



Specifications:

Brief introduction:

The check valve is designed and manufactured according well to API 6D and ANSI B 16.34.



It can work in high temperature and pressure circumstance. It also has the features of good appearance,

 nice function and superior. Widely used for petroleum,chemistry,water treatment industries.



Main part & material

Part name

Material

body

WCB,ZG1Cr18Ni9Ti,CF8,CF8M

Disc

1Cr18Ni9Ti 304,316

stem

1Cr18Ni9Ti 304,316

Seal ring

304,316(CF8,CF8M)

Packing

Polytetrafluoroethlene(PTFE)



SS304 Or SS316 1 2 3 4 Swing Check Valve For Gas / Steam In High Temperature 0    SS304 Or SS316 1 2 3 4 Swing Check Valve For Gas / Steam In High Temperature 1

DN

G

L

E

B

H

6

1/4"

60

10

24

45

10

3/8"

60

10

24

45

15

1/2"

65

12

26

48

20

3/4"

80

17

32

53

25

1"

91

20

14

59

32

1-1/4"

104

20

51

70

40

1-1/2"

120

20

58

75

50

2"

140

23

69

84



Specification

Nominal pressure(Mpa) PN 2.5,4.0
Strength testing pressure(Mpa) PT 3.8,6.0,9.6
Low pressure seal test(Mpa)   0.6
High pressure seal test(Mpa)   2.8,4.4,7.04
Applicable medium water, oil, gas, nitric acid, acetic acid
Applicable temperature -40~180



Feature:

⊙  Resist friction

Valve disc is given enough intensity and rigidity. Disc sealing surface may be built-up

welded with satellite alloy inlaid or other material responding to the users’ request.



⊙  Agility of switch

Solid ping is precisely installed and provided with high intensity to ensure operational performance

 and service life of valve.



⊙  Sealing credibility

The check valve adopt swing configuration. All the sealing part inside the valve, so all exterior leak

may except the middle flange, and also the middle flange gasket may be different according

to pressure class.



⊙  Distortion compensating

The disc and the hinge are connected between slippery spherical surface, and this makes the disc

 can circumgyrate in a little angle and regulates the sealing capability.
