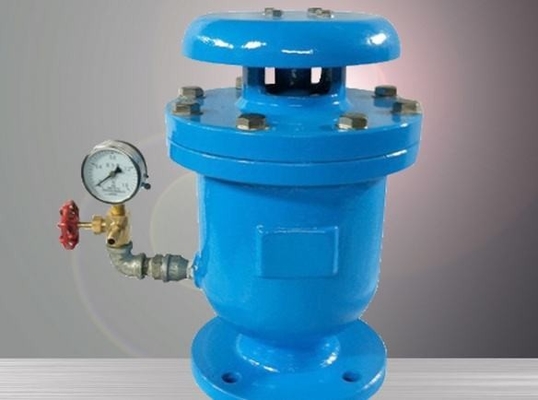

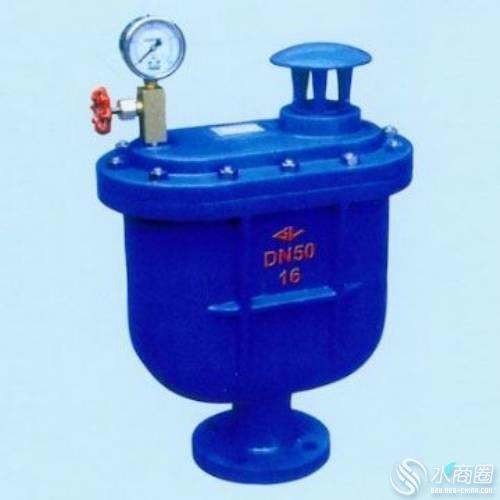

Triple Function Air Relief Valve Compact Design With Ss304 Floating Ball

Triple Function Air Relief Valve Compact Design With Ss304 Floating Ball
Triple Function Air Relief Valve Compact Design With Ss304 Floating Ball Triple Function Air Relief Valve Compact Design With Ss304 Floating Ball

Large Image :  Triple Function Air Relief Valve Compact Design With Ss304 Floating Ball

Product Details:
Place of Origin: Shanghai , China
Brand Name: OEM
Certification: ISO 9001
Model Number: CARX
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: Usually packing by plywood case suit for sea delivery
Delivery Time: 1usually within 35 days after received your payment
Payment Terms: T/T advance or L/C at sight
Supply Ability: 90,000pcs per month
Detailed Product Description
Product Name: Air Relief Valve DN: DN50 ~ DN400
Work Pressure: PN16 / 150lbs / JIS10K Standard: DIN / BS / AWWA / JIS
Floating Ball: Stainless Steel Ball Use For: Clear Water Etc.,
Color: Blue
High Light:

air relief valve

,

combination air release valve

Triple function Air Relief Valve By Compact Design With Internals In SS304 Floating Ball


  • a compact design ( monoblock body )
  •
  • with internals in ss304 ( float )
  •
  • Triple function
  •
    1. Large Air Exhausting when pipe systems are filling
    2. Air venting of small bubbles ( 2% of solved air in water) after the mean float closed
    3. Air intake during the vacuum of Pipes .
  •
  • Range DN50-80-100-150-200 full bore size.


Triple Function Air Relief Valve Compact Design With Ss304 Floating Ball 0



Specifications:


Part Material
NO.PART NAMEMaterial
1Body & BonnetDuctile Iron
2BaffleDuctile Iron
3Float BallStainless Steel 304
4Seal RingEPDM
5Air Release Valve Assembly



Technical Specification
Nominal Pressure: 1.0,1.6MPa
DN: 50~200mm
Medium: Water
Work temperature: ≤120℃
Design Standard : BS5163
Flange Standard : BS EN 1092
OTHER STANDARD ARE AVAILABLE UPON REQUEST.




Flanged end deminsion: according as ISO7005.2 PN16/PN10


working pressure: 1.0MPa/ 1.6Mpa
seal test: 1.1MPa /1.76Mpa
strength test: 1.5MPa / 2.4Mpa




1, body/bonnet: cast iron/ ductile iron
2, floating ball: SS304 / PTFE
3, vent: steel, 59# brass
4, seal ring: EPDM
5, bolt/nut: A3


Standard ; DIN BS ANSI
Working Pressure : PN10 PN16 PN25
Material : Cast Iron and Ductile Iron

1 )  Size: 1-1/2" to 12"
2 ) Class: PN10, PN16.125LB, 150LB
3 ) Type: NBR Floating Ball, Stainless steel / Brass Spindle
4 ) Material: CAST IRON, DUCTILE IRON
All our products are designed and manufactured strictly in conformity with the standard of API, ANSI,
AWWA, JIS, BS and DIN, etc. Most of our manufacturers have obtained ISO 9001, API 6D, TUV and
 CE certificates to ensure the quality stability of the products. We provide EN10204 3.1B. Mill Test
Certificate for all our supplied products.

Description:


The air release valves will be installed at sections of the pipeline
where air pockets would be formed.


The valves shall be of robust construction of double orifices with
 an integral isolating valve and

flanged base for connection to a valve stem that connects the air valve to the main pipeline.


The bore   leading to the flange base shall be in accordance to the size of the main pipeline and the
expected accumulation of air.




Competitive Advantage:

DESIGN STANDARDS

•   Coating Powder Epoxy Min. 250 micron
•    Three Way Functioning:
-   Release of large volumes of air during pipeline fill.
-   Allows in flows of large volumes of air when pipe is emptied.
-    Release of air under pressure
•   Low Maintenance
•   Working pressure Min. 0.1 bar Max. 16 bar
•   Hydraulic test performed under 1.5xPN pressure

Install:
Triple Function Air Relief Valve Compact Design With Ss304 Floating Ball 1

REMARKS & APPLICATIONS
•  For water (Not sewage) and neutral liquids.
•  Nominal Pressure: PN 16/25 & PN 25/40
•  Working Temperature: -10˚C to 120˚C



   Triple Function Air Relief Valve Compact Design With Ss304 Floating Ball 2

Triple Function Air Relief Valve Compact Design With Ss304 Floating Ball 3
