Product Name: | Electric Butterfly Valve | Application: | Sewage, Water Etc., |
---|---|---|---|
Size: | 2" ~ 120" | Pressure: | 125 Lbs / 200psi |
Standard: | DIN / BS / AWWA / JIS | Temperature: | -20~120 C |
Body: | Cast Iron/ Ductile Iron/ Stainless Steel | Disc/wedge: | Ductile Iron/ Stainless Steel/ SS304/SS316 |
Motor: | Assembly | Connect: | Double Flange End |
High Light: | ductile iron butterfly valve,water butterfly valves |

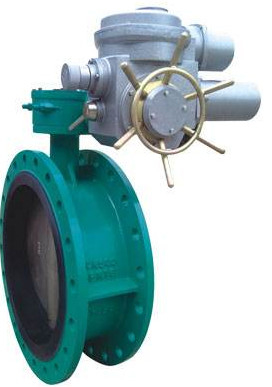

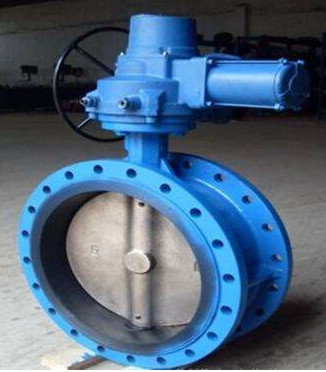

Electric Flanged Butterfly Valve (DN450) With Motor By 230V 50Hz
For valve
item for drink water and air
- according to global norms standards
- Test certificate for use in drink water
- Ambient temp. : - 10 … 50 C
- working pressure: 10 bar, max. 16 bar
- mention the torque value for open & close the valve for each valve
- body material : as GGG4 or SST
- The disk may be sst 304 or better
- the shaft : may be sst 304 or better
- seat disk may be sst 304 or better
- sealing ring may be EPDM
FOR actuators;
- Power supply : 380 v 50Hz
- IP : 67
- insulated : not less F
- each actuator have 2 limit switch ( open + close)
- have 2 torque limiting
- have all protections: ( loss phase, change phase, over load temp. & suddenly torque
- prefer to have temp. heater
- have indicator for gate position
- body: aluminum
Specifications:
Size: DN50 - 3000
Temperature: -15℃ - 150℃
Pressure: 1.0MPa/1.6MPa
Materials
Materials of Body : Ductile Iron (GGG40, GGG50). Cast Iron (GG25), Stainless Steel
Materials of Disc : Stainless Steel. Nickel Plated, Ductile Iron, Ductile Iron Coated Plastic,
Titanium Steel, Copper Alloy etc
Materials of Seat : Ethylene-Propylene-Diene Monomer (EPDM), Polytetrafluoroethylene (PTFE),
Nitrile Rubber (NBR), Chloroprene, Chlorosulfonated Polyethylene (Hypalon),
Silicon, Fluoroelastomer (VITON) , Caoutchouc etc.
Materials of Stem : Stainless Steel. Carbon Steel ,2Cr13
A butterfly valve is a type of flow control device, typically used to regulate a fluid flowing through a section of pipe.
The valve is similar in operation to a ball valve. A flat circular plate is positioned in the center of the pipe.
The plate has a rod through it connected to an actuator on the outside of the valve. Rotating the actuator turns the
plate either parallel or perpendicular to the flow. Unlike a ball valve, the plate is always present within the flow,
therefore a pressure drop is always induced in the flow regardless of valve position.
Brief introduction:
Double eccentric end flanged resilient sealing butterfly valve is operated by the disc rotating form
0° to 90°, can be applied to cut off or regulate the flow of medium.
Vitreous enamel is available upon request.
The valve can be actuated by operating lever, handle wheel, electric actuator or pneumatic actuator.
Widely used for potable water supply and distribution, electric power plant, gas supply, warm-air system,
smelting plant, chemical industry.
Features:
⊙ Professional design
When initiating the rotary opening movement the disc is off-seated after only a few
degree of opening movement and there is very little wear and tear between seat ring and disc.
⊙ Combine fastness
Stainless steel seat ring is rolled into the valve body by applying special rolling technology
when DN<1200. Ultrasonic spray applies seal of valve body when DN>1400.
⊙ Adjust tightness
Rubber sealing ring and disc can adjust tightness or softness of sealing with clamping ring, it insures
best performance of adjusting the compression of sealing.
⊙ Sealing reliable
Body and disc made of ductile iron which promote the impact resistance and pressure-bearing
capacity, sealing ring made of rubber and valve seat’s sealing surface is conical shaped, make the
sealing capacity more reliable.
⊙ Excellent corrosion protection
Inside electrostatic epoxy resin power coating or vitreous enamel(upon request), outside electrostatic
epoxy resin power coating.
⊙ Reliable health nature
Epoxy resin power is up to the health standard.
Mail part & material
Body, Disc: GGG50 with internal and external epoxy resin coating
Stems: 1Cr17Ni12Mo2Ti, Stainless steel min.13%Cr
Bushing :Bronze CuAI10Fe3
Seal ring, O-ring: NBR, EPDM or FPM
Technical Specification
- Nominal diameter:150~2600mm
- Nominal pressure:1.0/1.6/2.5Mpa
- Strength testing pressure:1.5/2.4/3.75Mpa
- Sealing testing pressure:1.1/1.76/2.75Mpa
Executive standard
Design standard |
DIN3354 |
Face to face |
DIN3202 or BS 5155 |
Flange end |
DIN 2501 |
Test & inspection |
DIN 3230 or GB/T 13927 |
Working temperature |
NBR<80℃; EPDM<120℃; FPM<160℃ |
Main external and connection dimension
1.0MPa mm
DN |
L |
H1 |
H2 |
H3 |
Flange dimensions comply with DIN 2501 |
||||||
long type |
short type |
O |
C |
g |
f |
b |
n-d |
||||
150 |
210 |
140 |
226 |
165 |
|
285 |
240 |
212 |
3 |
19 |
8-23 |
200 |
230 |
152 |
255 |
192 |
|
340 |
295 |
268 |
3 |
20 |
8-23 |
250 |
250 |
165 |
293 |
227 |
|
395 |
350 |
320 |
3 |
22 |
12-23 |
300 |
270 |
178 |
326 |
260 |
|
445 |
400 |
370 |
4 |
24.5 |
12-23 |
350 |
290 |
190 |
368 |
314 |
|
505 |
460 |
430 |
4 |
24.5 |
16-23 |
400 |
310 |
216 |
423 |
346 |
634 |
565 |
515 |
482 |
4 |
24.5 |
16-28 |
450 |
330 |
222 |
455 |
385 |
666 |
615 |
565 |
532 |
4 |
25.5 |
20-28 |
500 |
350 |
229 |
506 |
422 |
728 |
670 |
620 |
585 |
4 |
26.5 |
20-28 |
600 |
390 |
267 |
568 |
490 |
790 |
780 |
725 |
685 |
5 |
30 |
20-31 |
700 |
430 |
292 |
632 |
550 |
854 |
895 |
840 |
800 |
5 |
32.5 |
24-31 |
800 |
470 |
318 |
692 |
615 |
924 |
1015 |
950 |
905 |
5 |
35 |
24-34 |
900 |
510 |
330 |
815 |
678 |
1098 |
1115 |
1050 |
1005 |
5 |
37.5 |
28-34 |
1000 |
550 |
410 |
880 |
743 |
1163 |
1230 |
1160 |
1110 |
5 |
40 |
28-37 |
1200 |
630 |
470 |
1024 |
860 |
1307 |
1455 |
1380 |
1330 |
5 |
45 |
32-40 |
1400 |
710 |
530 |
1210 |
1010 |
1350 |
1675 |
1590 |
1535 |
5 |
46 |
36-43 |
1600 |
790 |
600 |
1340 |
1140 |
1480 |
1915 |
1820 |
1760 |
5 |
49 |
40-49 |
1800 |
870 |
670 |
1460 |
1360 |
1640 |
2115 |
2020 |
1960 |
5 |
52 |
44-49 |
2000 |
950 |
760 |
1660 |
1485 |
1800 |
2325 |
2230 |
2170 |
5 |
55 |
48-49 |
1.6MPa mm
DN |
L |
H1 |
H2 |
H3 |
Flange dimensions comply with DIN 2501 |
||||||
long type |
short type |
O |
C |
g |
f |
b |
n-d |
||||
150 |
210 |
140 |
226 |
165 |
|
285 |
240 |
212 |
3 |
19 |
8-23 |
200 |
230 |
152 |
255 |
192 |
|
340 |
295 |
268 |
3 |
20 |
12-23 |
250 |
250 |
165 |
293 |
227 |
|
405 |
355 |
320 |
3 |
22 |
12-28 |
300 |
270 |
178 |
326 |
260 |
|
460 |
410 |
378 |
4 |
24.5 |
12-28 |
350 |
290 |
190 |
368 |
314 |
|
520 |
470 |
438 |
4 |
26.5 |
16-28 |
400 |
310 |
216 |
423 |
346 |
634 |
580 |
525 |
490 |
4 |
28 |
16-31 |
450 |
330 |
222 |
455 |
385 |
666 |
640 |
585 |
550 |
4 |
30 |
20-31 |
500 |
350 |
229 |
506 |
422 |
728 |
715 |
650 |
610 |
4 |
31.5 |
20-34 |
600 |
390 |
267 |
568 |
490 |
790 |
840 |
770 |
725 |
5 |
36 |
20-37 |
700 |
430 |
292 |
632 |
550 |
854 |
910 |
840 |
795 |
5 |
39.5 |
24-37 |
800 |
470 |
318 |
692 |
615 |
924 |
1025 |
950 |
900 |
5 |
43 |
24-40 |
900 |
510 |
330 |
815 |
678 |
1098 |
1125 |
1050 |
1000 |
5 |
46.5 |
28-40 |
1000 |
550 |
410 |
880 |
743 |
1163 |
1255 |
1170 |
1115 |
5 |
50 |
28-43 |
1200 |
630 |
470 |
1024 |
860 |
1307 |
1485 |
1390 |
1330 |
5 |
57 |
32-49 |
1400 |
710 |
530 |
1210 |
1010 |
1350 |
1685 |
1590 |
1530 |
5 |
60 |
36-49 |
1600 |
790 |
600 |
1340 |
1140 |
1480 |
1930 |
1820 |
1750 |
5 |
65 |
40-56 |
2.5MPa mm
DN |
L |
H1 |
H2 |
H3 |
Flange dimensions comply with DIN 2501 |
||||||
long type |
short type |
O |
C |
g |
f |
b |
n-d |
||||
150 |
210 |
140 |
226 |
165 |
|
300 |
250 |
211 |
3 |
20 |
8-28 |
200 |
230 |
152 |
255 |
192 |
|
360 |
310 |
274 |
3 |
22 |
12-28 |
250 |
250 |
165 |
293 |
227 |
|
425 |
370 |
330 |
3 |
24.5 |
12-31 |
300 |
270 |
178 |
326 |
260 |
|
485 |
430 |
390 |
4 |
27.5 |
16-31 |
350 |
290 |
190 |
368 |
314 |
|
555 |
490 |
450 |
4 |
30 |
16-34 |
400 |
310 |
216 |
423 |
346 |
634 |
620 |
550 |
500 |
4 |
32 |
16-37 |
450 |
330 |
222 |
455 |
385 |
666 |
670 |
600 |
560 |
4 |
34.5 |
20-37 |
500 |
350 |
229 |
506 |
422 |
728 |
730 |
660 |
610 |
4 |
36.5 |
20-37 |
600 |
390 |
267 |
568 |
490 |
790 |
845 |
770 |
720 |
5 |
42 |
20-40 |
700 |
430 |
292 |
632 |
550 |
854 |
960 |
875 |
820 |
5 |
46.5 |
24-43 |
800 |
470 |
318 |
692 |
615 |
924 |
1085 |
990 |
930 |
5 |
51 |
24-49 |
900 |
510 |
330 |
815 |
678 |
1098 |
1185 |
1090 |
1028 |
5 |
55.5 |
28-49 |
1000 |
550 |
410 |
880 |
743 |
1163 |
|
|
|
5 |
|
|
1200 |
630 |
470 |
1024 |
860 |
1307 |
|
|
|
5 |
|
|
1400 |
710 |
530 |
1210 |
1010 |
1350 |
|
|
|
5 |
|
|
1600 |
790 |
600 |
1340 |
1140 |
1480 |
|
|
|
5 |
|
|
1. BRIEF INTRODUCTION:
The butterfly valve is operated by the disc rotating form 0° to 90°, can be applied to cut off or regulate
the flow of medium.
The valve can be actuated by operating lever, handle wheel electric actuator or pneumatic actuator.
Widely used for potable water supply, waste water treatment, electric power plant, gas supply,
warm-air system, smelting plant, ship building, textile, petroleum, chemistry, or other light industries.
2. Specification
name |
Butterfly Valve |
|
Item No |
D373H-10K |
|
DN(mm) |
DN50~DN3000 |
|
pressure(Mpa) |
1.0 |
|
Test pressure (Mpa) |
Seal test |
1.1 |
Body test |
1.5 |
|
temperature |
≤350℃ |
|
medium |
Water, sewage, sea water, hot water etc., |
3. FEATURES
⊙ EPDM seated, good seal
⊙ Low weight
⊙ Low flow resistance
⊙ Small operation torque
⊙ Easy to install and maintain
⊙ Open-close 90° more smoothly
4. APPLICABLE STANDARDS
1. Design according : API 609
2. Test standard according: JIS B2003
3. Connect flange standard according: JIS B2212
4. Face to face standard according: JIS B2002
5. Item Name of part Material Spec
NO |
Part name |
Material |
1 |
Body |
SS304 |
2 |
Gear box |
Assembly |
3 |
Disc |
SS304 |
4 |
Stem |
SS416 |
5 |
Seal ring |
316+Graphite |
6 |
packing |
Graphite |
6. Operation:
6.1. The two pipe flange should be smooth.
6.2. Put the butterfly valve in the pipe line, fixed the orientation hole first.
7. Delivery:
When delivery or store the butterfly valve, should keep in dry and cool environment.
8. Note:
8.1. Pipe flange should same as the butterfly valve flange.
8.2. Check the valve before installed, the environment should correspond to the butterfly valve
specification.
8.3. Before open butterfly valve, checking the disc without dirt.
8.4. The disc must be shut off place when installed.
8.5. Adjusting the pipe connect before installed.
8.6. The connect flange should be parallel.
8.7. After installed, the pressure test disc should be open place.
8.8. If the butterfly can not natural open or close, please kindly check it careful, can not strike, tamp or
use extension lever.
8.9. When maintenance or operation, must check the stem, lever, gear box or actuator have correctly
connect. Otherwise the stem will be push by pipe pressure.
9. The malfunction and resolving:
malfunction |
whys |
solution |
Seal leak |
1, Some rubbish on the seal 2, Seal have been light damage |
① Clean the rubbish. ② Replacing the disc |
Stem Packing leak |
1, packing be damaged 2, packing lapse |
① Tighten the gland nut ② Change the packing |
flange leak |
1, the nut release 2, gasket lapse |
1 . Tighten the nut 2. Change the gasket |
10. Maintenance
Open the worm box cover and add some butter per two months.
Check the seal, packing and flange, if leak, please maintain ASAP.
Wafer Rubber Seated Butterfly Valves
DN |
PN |
Connection dimensions(mm) |
|||
L |
D |
D1 |
Zφd |
||
40 |
1.0/1.6 |
43 |
145 |
110 |
4-18 |
50 |
43 |
165 |
125 |
4-18 |
|
65 |
46 |
185 |
145 |
4-18 |
|
80 |
46 |
200 |
160 |
4-18/8-18 |
|
100 |
52 |
220 |
180 |
8-18 |
|
125 |
56 |
250 |
210 |
8-18 |
|
150 |
56 |
285 |
240 |
8-22 |
|
200 |
60 |
340 |
295 |
8-22/12-22 |
|
250 |
68 |
395/405 |
350/355 |
12-22 |
|
300 |
78 |
445/460 |
400/410 |
12-22 |
|
350 |
1.0 |
78 |
505 |
460 |
16-22 |
400 |
102 |
565 |
515 |
16-26 |
|
450 |
114 |
615 |
565 |
20-26 |
|
500 |
127 |
670 |
620 |
20-26 |
|
600 |
154 |
780 |
725 |
20-30 |
|
700 |
165 |
895 |
840 |
24-30 |
|
800 |
190 |
1015 |
950 |
24-33 |
|
900 |
203 |
1115 |
1050 |
28-33 |
|
1000 |
216 |
1230 |
1160 |
28-39 |
|
1200 |
254 |
1455 |
1380 |
32-39 |
|
1200 |
0.6/0.25 |
254 |
1400/1375 |
1340/1320 |
32-34/32-30 |
1400 |
279 |
1620/1575 |
1560/1620 |
36-34/36-30 |
|
1600 |
318 |
1820/1785 |
1760/1730 |
40-34/40-30 |
|
1800 |
356 |
2045/1985 |
1970/1930 |
44-41/44-30 |
|
2000 |
406 |
2265/2185 |
2180/2130 |
48-48/48-30 |
Product Advantages:
1) Small in size and light in weight and maintaince.
It can be mounted whereever needed.
2) Simple, compact structure, quick 90 degree on-off operation.
3) Disc has two-way bearing, perfect seal, without leakage under
the pressure test.
4) Flow curve tending to straight-line. Excellent regulation performance.
5) Various kinds of materials, applicable to different medium.
Contact Person: Mr. Steve
Tel: 0086-21-57626759, 0086-13818096733
Fax: 86-21-57617555
Iron coating EPDM or NBR Resilient seated Gate Valve PN16 600mm
Soft Sealing / Rubber Seat And Wedge Resilient Seated Gate Valve Full Bore
Soft Wedge Resilient Seated 10 Inch Gate Valve With SS316 Spindle For Chemical
Light Weight Flange End Resilient Seated Gate Valve DIN F4 / Ductile Iron Gate Valves
Blue WCB / WC6 Cast Steel Gate Valve For Power Station / Butt Weld Gate Valve
Flanged Forged Cast Steel Gate Valve High Temperature , Threaded Gate Valve
2 " SW Socket Welding Cast Steel Gate Valve / Welded Bonnet Gate Valve
1/4'' Perforated Holes Conical Or Basket Type strainer Mounting Between Two Flanges
Cast Steel A216 WCB Y Type Strainer With SS304 Filter , JIS 20K Flange End
Ductile Iron GGG40 Adjustable Water Meter Strainer With Extension Pipe For Wafer
OEM Water Meter Strainer DN50 ~ DN200 , Filter Size 20 / 40 / 60 / 80 Mesh
