Double / Bleed Floating Ball Valve Stainless Steel DBB FLG AISI 316 PTFE

Certification
China Shanghai kangquan Valve Co. Ltd. certification
China Shanghai kangquan Valve Co. Ltd. certification
Have cooperated with this factory for 10 years, they never let me down, good quality, great service. I highly recommend

—— Tecofi

I am satisfied with this factory because of the carefulness of Steve. They always arrange everything for me without any worry.

—— Stema from France

Good Suppliers of Valvest, have over decedes cooperation.

—— Laurence

Verious of products for optional,and one- stop-shop, good to work with professional people

—— Thomas Louis

The quality is top . I think the factory value every detail. Every time i receive the goods, i am very satisfied

—— Alex from Russia

I'm Online Chat Now

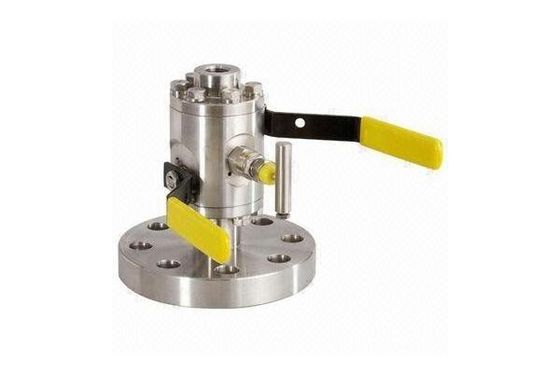

Double / Bleed Floating Ball Valve Stainless Steel DBB FLG AISI 316 PTFE
