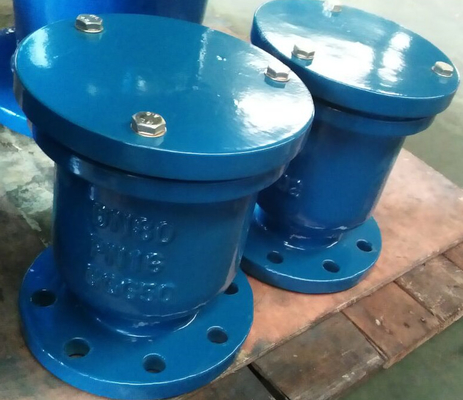

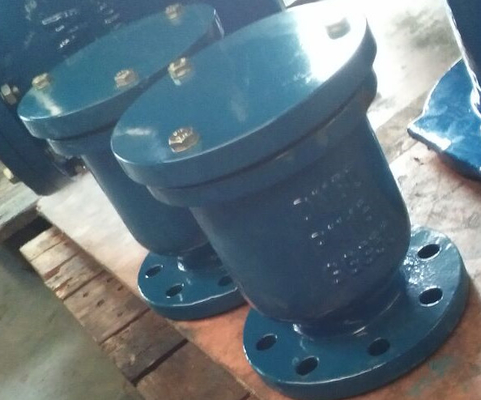

DN80 PN16 One Port Vent Air Release Valve With ABS Flaoting Ball

DN80 PN16 One Port Vent Air Release Valve With ABS Flaoting Ball
DN80 PN16 One Port Vent Air Release Valve With ABS Flaoting Ball DN80 PN16 One Port Vent Air Release Valve With ABS Flaoting Ball

Large Image :  DN80 PN16 One Port Vent Air Release Valve With ABS Flaoting Ball

Product Details:
Place of Origin: Shanghai , China
Brand Name: OEM
Certification: ISO 9001
Model Number: QB2 / KQRX
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: Usually packing by plywood case suit for sea delivery
Delivery Time: 1usually within 35 days after received your payment
Payment Terms: T/T advance or L/C at sight
Supply Ability: 90,000pcs per month
Detailed Product Description
Product Name: Air Valve Application: Water, Oil, Gas Etc.,
Size: DN50 ~ DN150 Pressure: PN16 / 150lbs / JIS10K
Standard: DIN / BS / AWWA / JIS Temperature: < 80 C
Body: Cast Iron/ Ductile Iron/ Stainless Steel Floating Ball: Stainless Steel/ PTFE/ Plastic
High Light:

water air release valve

,

combination air release valve

Vent Valve DN80 PN16 Made By Iron With One port and ABS Flaoting Ball



1  )  Size: 1-1/2" to 12"


2  )  Class: PN10, PN16.125LB, 150LB
3  )  Type: NBR Floating Ball, Stainless steel /Brass Spindle
4  )  Material: CAST IRON, DUCTILE IRON



DN80 PN16 One Port Vent Air Release Valve With ABS Flaoting Ball 0





Standard ; DIN BS ANSI
Working Pressure : PN10 PN16 PN25
Material : Cast Iron and Ductile Iron





Specifications:



Part Material
NO. PART NAME Material
1 Body & Bonnet Ductile Iron
2 Baffle Ductile Iron
3 Float Ball Stainless Steel 304
4 Seal Ring EPDM
5 Air Release Valve  Assembly



Technical Specification
Nominal Pressure: 1.0,1.6MPa
DN: 50~200mm
Medium: Water
Work temperature: ≤120℃
Design Standard : BS5163
Flange Standard : BS EN 1092
OTHER STANDARD ARE AVAILABLE UPON REQUEST.







Flanged end deminsion: according as ISO7005.2 PN16/PN10



working pressure:1.0MPa/ 1.6Mpa
seal test: 1.1MPa /1.76Mpa
strength test: 1.5MPa / 2.4Mpa





1, body/bonnet: cast iron/ ductile iron
2, floating ball: SS304 / PTFE
3, vent: steel, 59# brass
4, seal ring: EPDM
5, bolt/nut: A3




All our products are designed and manufactured strictly in conformity with the standard of API, ANSI,

AWWA, JIS, BS and DIN, etc. Most of our manufacturers have obtained ISO 9001, API 6D, TUV and

 CE certificates to ensure the quality stability of the products. We provide EN10204 3.1B. Mill Test

Certificate for all our supplied products.



Description:

The air release valves will be installed at sections of the pipeline where air pockets would be formed.



The valves shall be of robust construction of double orifices with an integral isolating valve and

flanged base for connection to a valve stem that connects the air valve to the main pipeline.



The bore   leading to the flange base shall be in accordance to the size of the main pipeline and the

expected accumulation of air.





Competitive Advantage:

DESIGN STANDARDS

•  Coating Powder Epoxy Min. 250 micron

•  Three Way Functioning:

-  Release of large volumes of air during pipeline fill.

-  Allows in flows of large volumes of air when pipe is emptied.

-  Release of air under pressure

•  Low Maintenance

•  Working pressure Min. 0.1 bar Max. 16 bar

•  Hydraulic test performed under 1.5xPN pressure



Install:

DN80 PN16 One Port Vent Air Release Valve With ABS Flaoting Ball 1



REMARKS & APPLICATIONS

•  For water (Not sewage) and neutral liquids.

•  Nominal Pressure: PN 16/25 & PN 25/40

•  Working Temperature: -10˚C to 120˚C







   DN80 PN16 One Port Vent Air Release Valve With ABS Flaoting Ball 2



DN80 PN16 One Port Vent Air Release Valve With ABS Flaoting Ball 3







DN80 PN16 One Port Vent Air Release Valve With ABS Flaoting Ball 4
