DN2200 Double Offset Butterfly Valve / Threaded Butterfly Valve

Name: DN2200 Double Offset Butterfly Valve / Threaded Butterfly Valve
Brand: OEM
SKU: DN2200
Rating: 5 (176 reviews)

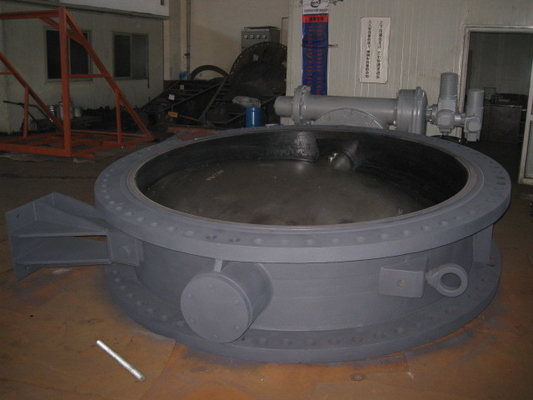

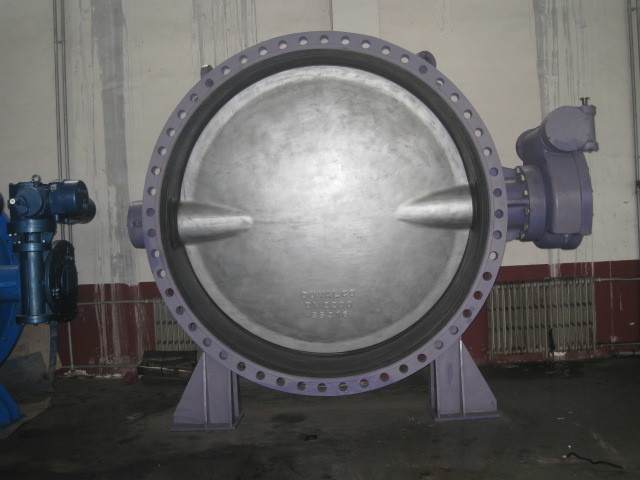

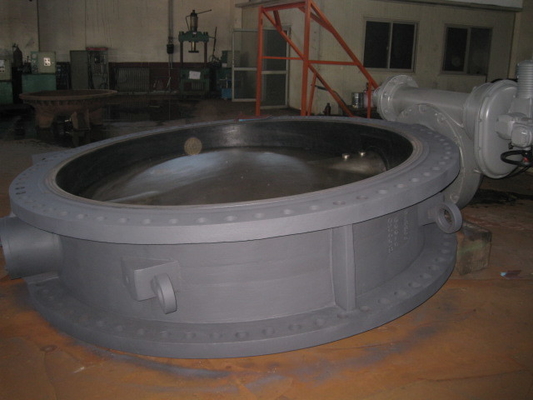

Large Image : DN2200 Double Offset Butterfly Valve / Threaded Butterfly Valve

Product Details:

Place of Origin:	Shanghai , China
Brand Name:	OEM
Certification:	WRAS/ ISO 9001
Model Number:	DN2200

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	negotiation
Packaging Details:	Usually packing by plywood case suit for sea delivery
Delivery Time:	1usually within 35 days after received your payment
Payment Terms:	T/T advance or L/C at sight
Supply Ability:	90,000pcs per month

Contact Now

Detailed Product Description

Product Name:	Double Offset Butterfly Valve	Application:	Industrial
Size:	DN2200	Standard:	DIN / BS / AWWA / JIS
Disc/wedge:	Ductile Iron/ Stainless Steel/ SS304/SS316	Seat:	EPDM
High Light:	ductile iron butterfly valve , water butterfly valves

DN2200 Double Offset Butterfly Valve / Threaded Butterfly Valve

Double Offset Butterfly Valve Introduction

Butterfly valves DN 2200 PN 16 in SS, Lever operated

Body: CI FG 260 Disc: A351 Gr.CF8 Shaft: AISI 410 Seat: EPDM

Double Offset Butterfly Valve Specifications:

a ) Nominal bore: 1-60"

b ) Nominal pressure: ANSI150-300Lb

c ) Connection type: flange type, clamp type

d ) Temperature range: -20-600oC

e ) Transmission type: worm, lever

f ) Optional material: GGG500-7 , GG20 , WCB 304 316 316L

g ) Packing: Wooden box

This product adopts three-eccentric structure, has no friction between valve plate and valve seat,

high flowrate and long service life and is able to increasingly tighten.

Double Offset Butterfly Valve Prameters

DN (mm)	PN (MPa)	Connection dimensions(mm)
		L	D	D1	Zφd
		L	D	D1	Zφd
40	1.0/1.6	43	145	110	4-18
50		43	165	125	4-18
65		46	185	145	4-18
80		46	200	160	4-18/8-18
100		52	220	180	8-18
125		56	250	210	8-18
150		56	285	240	8-22
200		60	340	295	8-22/12-22
250		68	395/405	350/355	12-22
300		78	445/460	400/410	12-22
350	1.0	78	505	460	16-22
400		102	565	515	16-26
450		114	615	565	20-26
500		127	670	620	20-26
600		154	780	725	20-30
700		165	895	840	24-30
800		190	1015	950	24-33
900		203	1115	1050	28-33
1000		216	1230	1160	28-39
1200		254	1455	1380	32-39
1200	0.6/0.25	254	1400/1375	1340/1320	32-34/32-30
1400		279	1620/1575	1560/1620	36-34/36-30
1600		318	1820/1785	1760/1730	40-34/40-30
1800		356	2045/1985	1970/1930	44-41/44-30
2000		406	2265/2185	2180/2130	48-48/48-30

Pneumatic Operated Butterfly Valve Advantages:

1) Small in size and light in weight and maintaince.
It can be mounted whereever needed.

2) Simple, compact structure, quick 90 degree on-off operation.

3) Disc has two-way bearing, perfect seal, without leakage under
the pressure test.

4) Flow curve tending to straight-line. Excellent regulation performance.

5) Various kinds of materials, applicable to different medium.

6) Strong wash and brush resistance and can fit to bad working condition.
