Product Details:
Payment & Shipping Terms:
|
Product Name: | Non-Return Valve | Application: | Oil, Gas, Water, Steam Etc., |
---|---|---|---|
Size: | DN15 ~DN700 | Pressure: | 150/300/600/800/900/1500/2500lbs |
Standard: | API 6D/ ANSI 16.5 B/ JIS 20K/JIS 10K | Temperature: | -29~425 C |
Body: | Cast Steel/WCB/WC6/stainless Steel | Seat: | Stainless Steel/ 2Cr13 |
High Light: | non return valve,ductile iron swing check valve |

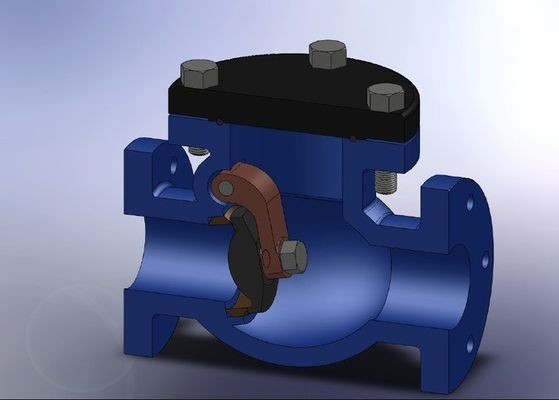

Check Valve 6", Class 125 Flanged, 200 PSI Working, UL/FM Approved, Shield
Specifications:
Check Valve 2"~6"
Class 125 Flanged
200 PSI working
UL/FM approved
Standards
Design and manufacture as BS1868, ANSI B16.34
Face to face dimensions as ANSI B16.10
End flange dimension as ANSI B16.5
Pressure-temperature ratings as ANSI B16.34
Pressure test as API 598
Applicable Medium: water ,gas,oil,and other causticity medium.
Test Pressure
Test Item |
Shell Test |
Seal Test |
Back Seal Test |
Air Seal Test |
|||||
Medium |
Water |
Air |
|||||||
Unit |
MPa |
lbf/in2 |
MPa |
lbf/in2 |
MPa |
lbf/in2 |
MPa |
lbf/in2 |
|
Pressure (Class) |
150 |
3.1 |
450 |
2.2 |
315 |
2.2 |
315 |
0.5-0.7 |
60-100 |
300 |
7.8 |
1125 |
5.6 |
815 |
5.6 |
815 |
|||
400 |
10.3 |
1500 |
7.6 |
1100 |
7.6 |
1100 |
|||
600 |
15.3 |
2225 |
11.2 |
1630 |
11.2 |
1630 |
|||
900 |
23.1 |
3350 |
16.8 |
2440 |
16.8 |
2440 |
|||
1500 |
38.4 |
5575 |
28.1 |
4080 |
28.1 |
4080 |
Brief introduction:
The check valve is designed and manufactured according well to API 6D and ANSI B 16.34. It can work in high temperature and pressure circumstance. It also have the features of good appearance, nice function and superior. Widely used for petroleum, chemistry, water treatment industries.
Features:
- Resist friction
Valve disc is given enough intensity and rigidity. Disc sealing surface may be built up welded with
satellite alloy inlaid or other material responding to the users’ request.
- Agility of switch
Solid ping is precisely installed and provided with high intensity to ensure operational performance
and service life of valve.
- Sealing credibility
The check valve adopt swing configuration. All the sealing part inside the valve, so all exterior leak
may except the middle flange, and also the middle flange gasket may be different
according to pressure class.
- Distortion compensating
The disc and the hinge are connected between slippery spherical surface, and this makes the disc
can circumgyrate in a little angle and regulates the sealing capability.
Mail part & material
|
Item Name of parts |
material |
1 |
Body |
WCB,CF8 |
2 |
Seat |
304,A105+ satellite |
3 |
Disc |
304,A105+ satellite |
4 |
Gasket |
Graphite+304 |
5 |
Bonnet |
WCB,CF8 |
6 |
Yoke |
WCB,CF8 |
7 |
Hinge |
WCB,CF8,2Cr13 |
8 |
Hinge pin |
2Cr13,304 |
Main Connection Dimensions
Type |
Size(mm) |
Dimension(mm) |
|||||||
inch |
DN |
L |
D |
D1 |
D2 |
b |
z-Φd |
H |
|
H44H/W/Y-150Lb |
1″ |
25 |
127 |
108 |
79.5 |
51 |
12 |
4-Φ15 |
90 |
11/2″ |
40 |
165 |
127 |
98.5 |
73 |
15 |
4-Φ15 |
115 |
|
2″ |
50 |
203 |
152 |
120.7 |
92 |
16 |
4-Φ19 |
150 |
|
21/2″ |
65 |
216 |
177.8 |
139.7 |
104.7 |
18 |
4-Φ19 |
160 |
|
3″ |
80 |
241 |
190.5 |
152.4 |
127 |
19 |
4-Φ19 |
180 |
|
4″ |
100 |
292 |
229 |
190.5 |
157 |
24 |
8-Φ19 |
220 |
|
5″ |
125 |
330 |
254 |
216 |
185.7 |
26 |
8-Φ22 |
280 |
|
6″ |
150 |
356 |
279 |
241.3 |
216 |
26 |
8-Φ22 |
340 |
|
8″ |
200 |
495 |
343 |
298.5 |
270 |
29 |
8-Φ22 |
400 |
|
10″ |
250 |
622 |
406 |
362 |
324 |
31 |
12-Φ25 |
460 |
|
12″ |
300 |
698 |
483 |
432 |
381 |
32 |
12-Φ25 |
530 |
|
14″ |
350 |
787 |
533 |
476.3 |
413 |
35 |
12-Φ29 |
580 |
|
16″ |
400 |
864 |
597 |
540 |
470 |
37 |
16-Φ29 |
600 |
|
18″ |
450 |
978 |
635 |
578 |
533.4 |
40 |
16-Φ32 |
650 |
|
20″ |
500 |
978 |
698 5 |
635 |
584 |
43 |
20-Φ32 |
700 |
|
24″ |
600 |
1295 |
813 |
749.3 |
692 |
48 |
20-Φ35 |
780 |
|
28″ |
700 |
1448 |
927 |
863.6 |
800 |
72 |
28-Φ35 |
850 |
|
30″ |
800 |
1524 |
984 |
914.4 |
857 |
75 |
28-Φ35 |
920 |
Type |
Size(mm) |
Dimension(mm) |
|||||||
|
inch |
DN |
L |
D |
D1 |
D2 |
b |
z-Φd |
H |
H44H/W/Y-300Lb |
2″ |
50 |
267 |
165 |
127 |
92 |
23 |
8-Φ19 |
170 |
|
21/2″ |
65 |
292 |
190.5 |
149.4 |
104.7 |
26 |
8-Φ22 |
180 |
|
3″ |
80 |
318 |
210 |
168.2 |
127 |
29 |
8-Φ22 |
210 |
|
4″ |
100 |
356 |
254 |
200.2 |
157 |
32 |
8-Φ22 |
290 |
|
5″ |
125 |
400 |
279 |
235 |
185.7 |
35 |
8-Φ22 |
290 |
|
6″ |
150 |
444 |
318 |
270 |
216 |
37 |
12-Φ22 |
350 |
|
8″ |
200 |
533 |
381 |
330 |
270 |
42 |
12-Φ25 |
430 |
|
10″ |
250 |
622 |
445 |
387.5 |
324 |
48 |
16-Φ29 |
480 |
|
12″ |
300 |
711 |
521 |
451 |
381 |
51 |
16-Φ32 |
550 |
|
14″ |
350 |
838 |
584 |
514.5 |
413 |
54 |
20-Φ32 |
620 |
|
16″ |
400 |
864 |
648 |
571.5 |
470 |
58 |
20-Φ35 |
650 |
|
18″ |
450 |
978 |
711 |
628.7 |
533.4 |
61 |
24-Φ35 |
690 |
|
20″ |
500 |
1016 |
775 |
685.8 |
584 |
64 |
24-Φ35 |
740 |
|
24″ |
600 |
1346 |
914.4 |
812.8 |
692 |
70 |
24-Φ41 |
800 |
|
28″ |
700 |
1499 |
1035 |
939.8 |
800 |
86 |
28-Φ45 |
860 |
|
30″ |
800 |
1594 |
1092 |
997 |
857 |
92 |
28-Φ48 |
980 |
Type |
Size(mm) |
Dimension(mm) |
|||||||
|
inch |
DN |
L |
D |
D1 |
D2 |
b |
z-Φd |
H |
H44H/W/Y-600Lb |
2″ |
50 |
292 |
165 |
127 |
92 |
26 |
8-Φ19 |
190 |
|
21/2″ |
65 |
330 |
190.5 |
149.4 |
104.7 |
29 |
8-Φ22 |
210 |
|
3″ |
80 |
356 |
210 |
168.2 |
127 |
32 |
8-Φ22 |
230 |
|
4″ |
100 |
432 |
273 |
216 |
157 |
38 |
8-Φ25 |
300 |
|
5″ |
125 |
508 |
330 |
266.7 |
185.7 |
45 |
8-Φ29 |
310 |
|
6″ |
150 |
559 |
356 |
292 |
216 |
48 |
12-Φ29 |
370 |
|
8″ |
200 |
660 |
419 |
349 |
270 |
56 |
12-Φ32 |
450 |
|
10″ |
250 |
787 |
508 |
432 |
324 |
64 |
16-Φ35 |
500 |
|
12″ |
300 |
838 |
559 |
489 |
381 |
67 |
20-Φ35 |
570 |
|
14″ |
350 |
889 |
603 |
527 |
413 |
70 |
20-Φ38 |
640 |
|
16″ |
400 |
991 |
686 |
603 |
470 |
77 |
20-Φ41 |
670 |
|
18″ |
450 |
1092 |
743 |
654 |
533.4 |
83 |
20-Φ44 |
710 |
|
20″ |
500 |
1194 |
855 |
724 |
584 |
89 |
24-Φ44 |
760 |
|
24″ |
600 |
1397 |
1040 |
838 |
692 |
102 |
24-Φ52 |
830 |
Type |
Size(mm) |
Dimension(mm) |
|||||||
|
inch |
DN |
L |
D |
D1 |
D2 |
b |
z-Φd |
H |
H44H/W/Y-900Lb |
2″ |
50 |
368 |
216 |
165.1 |
92 |
38.5 |
8-Φ26 |
220 |
|
21/2″ |
65 |
419 |
244 |
190.5 |
104.7 |
41.5 |
8-Φ29 |
250 |
|
3″ |
80 |
381 |
241 |
190.5 |
127 |
38.5 |
8-Φ26 |
270 |
|
4″ |
100 |
457 |
292 |
234.9 |
157 |
44.5 |
8-Φ32 |
330 |
|
5″ |
125 |
559 |
349 |
279.4 |
185.7 |
51 |
8-Φ35 |
350 |
|
6″ |
150 |
610 |
381 |
317.5 |
216 |
56 |
12-Φ32 |
420 |
|
8″ |
200 |
737 |
470 |
393.7 |
270 |
63.5 |
12-Φ39 |
490 |
|
10″ |
250 |
838 |
545 |
469.9 |
324 |
70 |
16-Φ39 |
550 |
|
12″ |
300 |
965 |
610 |
533.4 |
381 |
79.5 |
20-Φ39 |
630 |
|
14″ |
350 |
1029 |
640 |
558.8 |
413 |
86 |
20-Φ42 |
680 |
|
16″ |
400 |
1130 |
705 |
615.9 |
470 |
89 |
20-Φ45 |
720 |
|
18″ |
450 |
1219 |
785 |
685.8 |
533.4 |
102 |
20-Φ51 |
750 |
|
20″ |
500 |
1321 |
855 |
749.3 |
584 |
108 |
20-Φ54 |
800 |
|
24″ |
600 |
1549 |
1040 |
901.7 |
692 |
140 |
20-Φ67 |
880 |
H44H/W/Y-1500Lb |
2″ |
50 |
368 |
216 |
165.1 |
92 |
38.5 |
8-Φ26 |
222 |
|
21/2″ |
65 |
419 |
244 |
190.5 |
104.7 |
41.5 |
8-Φ29 |
260 |
|
3″ |
80 |
470 |
267 |
203.2 |
127 |
48 |
8-Φ32 |
270 |
|
4″ |
100 |
546 |
311 |
241.3 |
157 |
54 |
8-Φ35 |
330 |
|
5″ |
125 |
673 |
375 |
292.1 |
185.7 |
73.5 |
8-Φ42 |
370 |
|
6″ |
150 |
705 |
394 |
317.5 |
216 |
83 |
12-Φ39 |
440 |
|
8″ |
200 |
832 |
483 |
393.7 |
270 |
92 |
12-Φ45 |
510 |
|
10″ |
250 |
991 |
584 |
482.6 |
324 |
108 |
12-Φ51 |
570 |
