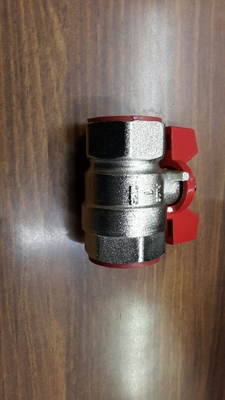

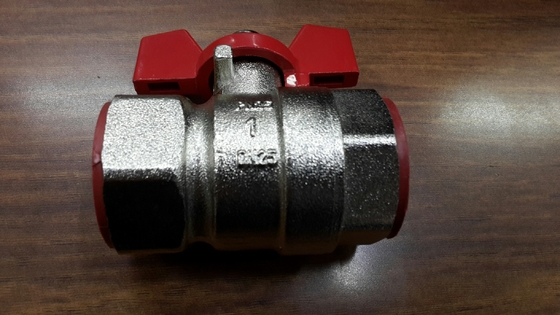

Brass Forged Floating Ball Valve 1" x 1" With Butterfly Handle , Female to Female Thread End

Brass Forged Floating Ball Valve 1" x 1" With Butterfly Handle , Female to Female Thread End
Brass Forged Floating Ball Valve 1" x 1" With Butterfly Handle , Female to Female Thread End Brass Forged Floating Ball Valve 1" x 1" With Butterfly Handle , Female to Female Thread End

Large Image :  Brass Forged Floating Ball Valve 1" x 1" With Butterfly Handle , Female to Female Thread End

Product Details:
Place of Origin: Shanghai , China
Brand Name: OEM
Certification: ISO 9001
Model Number: Q11F
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: Usually packing by plywood case suit for sea delivery
Delivery Time: usually within 35 days after received your payment
Payment Terms: T/T advance or L/C at sight
Supply Ability: 90,000pcs per month
Detailed Product Description
Product Name: Ball Valve Application: Water, Oil, Gas Etc.,
Size: DN15 ~DN100 Pressure: 150lbs /JIS 10K /PN16
Standard: DIN / BS / ANS I/ JIS / API / ASME Temperature: -10~120 C
Body: Brass With Chrome Plated Ball: Brass / SS304 Chromed
Handle: Butterfly Handle
High Light:

flanged ball valves

,

stainless steel ball float valve

Brass Forged Ball Valve 1" x 1" With Butterfly Handle, Female to Female Thread End



Brass ball valve, with Chrome plated, no brass look.







Specifications:



Technical Specification



-  Nominal diameter: 1/2”-25”

-  Applicable Temperature: -29℃~425℃(steel) -40℃~550℃(stainless steel)

-  Nominal pressure: 150lbs, 300lbs, 600Lb,900lbs,1500lbs PN16/25/40/64/100/160, JIS 5K /10K/20K

-  Applicable Medium: water ,gas,oil,and other causticity medium.



Applications Standard



-  Manufacture standard : API 608/ DIN/ BS/JIS

-  Face to face dimension: ANSI B 16.10,API 6D/ DIN/ BS/JIS

-  Flange dimension: ANSI B 16.5 MSS-SP-44/ DIN/ BS/JIS

-  Test: API 598 API 6D/ DIN/ BS/JIS

Brass Forged Floating Ball Valve 1" x 1" With Butterfly Handle , Female to Female Thread End 0

Brief introduction:



Brass Ball Valve is widely used in Paper Mill,Pharmaceutical Factory, Power Plant and etc.


Brass Forged Floating Ball Valve 1" x 1" With Butterfly Handle , Female to Female Thread End 1





-   Screwed Female Ends to IS 554 / BS 21 / ISO 7.
-   Full Bore, Two Piece Design.
-   Quarter Turn, Lever Operated.
-   Provided with Forged Brass Hard Chrome Plated Ball.
-   PTFE Body Rings and Gland Packing.
-   Chrome Plated Finish.





Test Pressure (Hydraulic) Shell : 25 kg/cm²g (350 psig) Seat : 16 kg/cm²g (225 psig)




Materials of Construction


Name of Part Material Specification
Stem Forged Brass IS 6912 Gr. FLB
Nut Carbon Steel IS 1367
Washer Carbon Steel IS 1367
Lever Carbon Steel IS 2062
Body & Gland Nut Forged Brass IS 6912 Gr. FLB
Gland Packing PTFE BS EN 12086-1
Ball Forged Brass IS 6912 Gr. FLB
Body Seat Ring PTFE BS EN 12086-1
Bonnet Forged Brass IS 6912 Gr. FLB


Brass Forged Floating Ball Valve 1" x 1" With Butterfly Handle , Female to Female Thread End 2





Sizes / Dimensions
Inches mm A B C D
1/4 8 47 1/4" 37 90
3/8 10 47 3/8" 37 90
1/2 15 50 1/2" 40 90
3/4 20 58 3/4" 43 120
1 25 67 1" 51 120
1 1/4 32 76 1 1/4" 65 154
1 1/2 40 87 1 1/2" 72 154
2 50 104 2" 80 170
2 1/2 65 139 2 1/2" 102 250

Brass Forged Floating Ball Valve 1" x 1" With Butterfly Handle , Female to Female Thread End 3











Technical Specification

Nominal pressure(Mpa)

PN

2.5,4.0,6.4

Strength testing pressure(Mpa)

PT

3.8,6.0,9.6

Low pressure seal test(Mpa)



0.6

High pressure seal test(Mpa)



3.0,4.8,7.6

Applicable medium

water, oil, gas, nitric acid, acetic acid

Applicable temperature

-40~180℃



Feature:

-  Anti-blowout Structure of Valve Stem

When medium pass through the valve, the pressure in valve body may possibly

push the stem out, or when the valve is in repair, if there is pressure in the middle

cavity, the stem or medium seems to easily fly out upon disassembling the valve,

which can cause injures to human beings,



To prevent the possibilities, a dummy club is packing and thrust bearing are burnt

or packing is damaged due to other causes, the pressure of medium in valve body

will make the dummy club of valve stem in close contact with the upper seal face of

valve body.



Thus to prevent medium leaking out from the damage packing position.



-  Reliable Seal Structure

The seat is made of PTFE. Because the contact area between seat and the ball will

becomes more high with rising of pressure of the middle cavity,



Small Resistance ball valve has the smallest resistance of all the valve, in the case

of reduced bore, the resistance is little still.



-  Prompt switch

The ball valve circumrotates in 90°,It work quickly to open or close.







Description:

Brief introduction:

The ball valve is designed and manufactured according well to API 608. Floating ball when small caliber,

and fixed ball when large caliber.



It has fire protection structure and antistatic device. Widely used for petroleum, chemistry, water

treatment industries.



Features:



- Anti-blowout Structure of Valve Stem



When medium pass through the valve, the pressure in valve body may possibly push the stem out, or

 when the valve is in repair, if there is pressure in the middle cavity, the stem or medium seems to easily

fly out upon disassembling the valve, which can cause injures to human beings, To prevent the

possibilities, a dummy club is packing and thrust bearing are burnt or packing is damaged due to other

causes, the pressure of medium in valve body will make the dummy club of valve stem in close contact

with the upper seal face of valve body. Thus to prevent medium leaking out from the damage packing

 position.



- Reliable Seal Structure



The seat is made of PTFE. Because the contact area between seat and the ball will becomes more high

 with rising of pressure of the middle cavity, Small Resistance ball valve has the smallest resistance of all

 the valve, in the case of reduced bore, the resistance is little still.



- Prompt switch



The ball valve circumrotates in 90°,It work quickly to open or close.



Test Pressure

Test Item

 Shell Test

 Seal Test

 Back Seal Test

Air Seal Test

 Medium

 Water

 Air

 Unit

MPa

Lbf/in2

MPa

Lbf/in2

MPa

Lbf/in2

MPa

Lbf/in2

 Pressure (Class)

150

3.1

450

2.2

315

2.2

315

0.5-0.7

60-100

300

7.8

1125

5.6

815

5.6

815

400

10.3

1500

7.6

1100

7.6

1100

600

15.3

2225

11.2

1630

11.2

1630

900

23.1

3350

16.8

2440

16.8

2440
