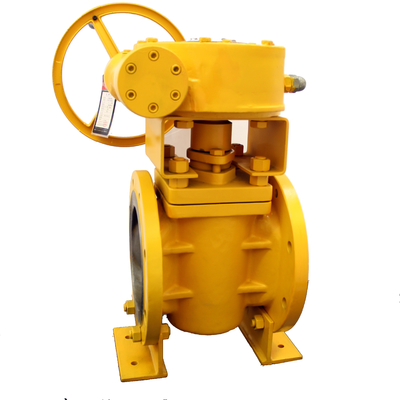

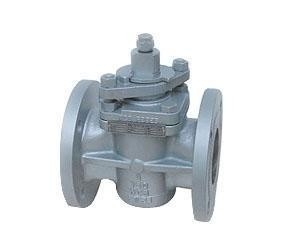

Sleeve type soft sealing Lubricated Plug Valve ACC / ASME B16.34 Class 600 Lbs

China Sleeve type soft sealing Lubricated Plug Valve ACC / ASME B16.34 Class 600 Lbs supplier
Sleeve type soft sealing Lubricated Plug Valve ACC / ASME B16.34 Class 600 Lbs supplier Sleeve type soft sealing Lubricated Plug Valve ACC / ASME B16.34 Class 600 Lbs supplier

Large Image :  Sleeve type soft sealing Lubricated Plug Valve ACC / ASME B16.34 Class 600 Lbs

Product Details:

Place of Origin: Shanghai , China
Brand Name: OEM
Certification: ISO 9001
Model Number: X363F

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: Usually packing by plywood case suit for sea delivery
Delivery Time: 1usually within 35 days after received your payment
Payment Terms: T/T advance or L/C at sight
Supply Ability: 90,000pcs per month
Contact Now
Detailed Product Description
Name: Plug Valve Medium: Acid, Alkali
Size: DN15~DN400, 1/2"~16" Pressure: PN10~PN420, CLASS150~2500
Standard: DIN/BS/AWWA/JIS Temperature: -20~120 C
Body: ASTM A995 5A Plug: ASTM A-995 5A
Seat: PTFE

Plug Valve On/Off sevice by Non Lubricated As ACC/ASME B16.34 Class 600 Lbs



Plug Valve On/Off sevice by Non Lubricated As ACC/ASME B16.34 Class 600 Lbs,



design pressure 100 bar to 20 Celuis



body hidrostatic test pressure Acc/API -598



seat close hidrostatic test pressre Acc/Api-598





Conform to API 6D, API 599, and ASME B16.34. They are tested according to API 598, and marked as per MSS SP-25



Construction is as follows:

- Regular Port
- Short, Regular or Venturi Pattern
- Bolted Bonnet with spiral-would gasket
- Anti-static Design & Blow-out proof stem
- Socket Weld Ends to ASME B16.11
- Butt Weld Ends to ASME B16.25
- Screwed Ends to ANSI/ASME B1.20.1
- Flanged Ends to ASME B16.5



Main Part & Materials

Part Names Part Materials
Body WCB/A105 LCB/LF2 WC6/F22 CF8/F304 CF8M/F316 CF3/F304L CF3M/F316L
Bonnet WCB/A105 LCB/LF2 WC6/F22 CF8/F304 CF8M/F316 CF3/F304L CF3M/F316L
Plug  A105+ENP SS304 F22 SS304 SS316 SS304L SS316L
Seat/Seat Ring PTFE or METAL
Packing Graphite/PTFE
Gasket SS304+Graphite/SS304+Graphite
Bolts/Nuts B7/2H L7/4 B16/4 B8/8 B8M/8M B8/8 B8M/8M
Suitable Medium W.O.G etc. HNO3, CH3OOH etc.
Suitable Temperature -29~425 °C -46~340 °C -46~340 °C -196~427 °C -196~427 °C -196~427 °C -196~427 °C



OUR ADVANTAGE

Normal Pressure Rating
PN10~PN420, CLASS150~2500

Normal Size Range
DN15~DN400, 1/2"~16"



Sleeve type soft sealing plug (DIN)  is applicable to the cutting and connection of pipelines medium that are used in various industries such as petroleum, chemical industry, pharmacy, chemical fertilizer, power industry etc under nominal pressure of PN1.6~16Mpa, and working temperature of  -29~180℃.







Description:



Main parts & materials:



Sleeve type soft sealing Lubricated Plug Valve ACC / ASME B16.34 Class 600 Lbs Sleeve type soft sealing Lubricated Plug Valve ACC / ASME B16.34 Class 600 Lbs



No.

Part name

material

1

Body

GS-C25

1.7363

1.4308,1.4408,1.4306,1.4301

2

Sleeve

PTFE

3

Plug

ASTM A182-Gr,F6a,ASTM A182-F22

ASTM A182-F304,F316,F321,F304L,F316L

4

Gasket

Flexible graphite + stainless steel, PTFE

5

Adjusting gasket

ASTM A182-Gr,F6a,ASTM A182-F22

ASTM A182-F304,F316,F321,F304L,F316L

6

Cover

GS-C25

1.7363

1.4308,1.4408,1.4306,1.4301

7

Adjusting bolt

ASTM A193-B7, A320-B8, A193-B8M

8

Net

ASTM A194-2H, A194-8, A194-8M

9

Bolt

ASTM A193-B7, A320-B8, A193-B8M

10

Yoke

Q235,WCB

11

Worm









Feature:

1.  The product has reasonable structure, reliable sealing, excellent performance and beautiful

      appearance.



2.   Its sealing is realized by the sealing face around the sleeve. It has unique 360 degree metal

      edge for protection and fixing of the sleeve.



3.  There Is no cavity in the valve for accumulation of medium.



4.  Metal edge provides the function of self-cleaning when the plug is rotated,

     applicable to the operation condition that is glutinous and apt to smudge.



5.   Its characteristic double-direction flow makes installation and sue more convenient.



      6.  The materials of the parts and sizes of flanges can be reasonably configured according

           the actual operation condition of the requirements of the customers, so as to meet

           the various needs of engineering.



Executive standard

Structural formation

BC

Driving manner

worm & worm gear, pneumatic, electric-actuated ,Wrench wheel

Design standard

 DIN

Face to face

 DIN 3202F1

Flange end

 DIN 2543-2549

Test & inspection

 DIN 3230

The size of serial valve connecting flange can be designed according to customers requirement.



Nominal pressure(MPa)

Shell test(MPa)

Sealing test(MPa)

Suitable temp

Suitable medium

1.6

2.4

1.76

-29~180℃

Water, oil & gas

2.5

3.75

2.75

4.0

6.0

4.40

6.4

9.6

7.04

10.0

15.0

11.0

16.0

24.0

17.6



Main technical data











Sleeve type soft sealing Lubricated Plug Valve ACC / ASME B16.34 Class 600 Lbs



Main external and connection dimension





KQDX43-16

pressure

PN16

size

mm

15

20

25

32

40

50

65

80

100

125

150

200

250

300

350

L

130

150

160

180

200

230

290

310

350

400

480

600

730

850

980

H

150

155

160

180

190

200

220

230

380

460

520

580

620

680

740

W

300

300

300

350

400

500

500

550

300

300

320

320

350

380

380

Weight

9

10

11

13

14

19

23

27

43

62

75

155

222

390

580



KQDX43-25

pressure

PN25

size

mm

15

20

25

32

40

50

65

80

100

125

150

200

250

300

350

L

130

150

160

180

200

230

290

310

350

400

480

600

730

850

980

H

150

155

160

180

190

200

220

230

380

460

520

580

620

680

740

W

300

300

300

350

400

500

500

550

300

300

320

320

350

380

380

Weight

10

11

13

15

17

22

31

55

77

88

190

190

235

399

630



KQDX43-40

pressure

PN40

size

mm

15

20

25

32

40

50

65

80

100

125

150

200

250

300

350

L

130

150

160

180

200

230

290

310

350

400

480

600

730

850

980

H

190

195

225

260

280

310

340

395

435

470

535

590

630

680

720

W

120

140

140

180

200

220

260

280

300

340

400

450

450

500

500

Weight

12

14

18

21

24

29

33

39

75

103

146

251

337

521

720



KQDX43-64

pressure

PN64

size

mm

15

20

25

32

40

50

65

80

100

125

150

200

250

300

350

L

130

150

160

180

200

230

290

310

350

400

480

600

730

850

980

H

190

195

225

260

280

310

340

395

435

470

535

590

630

680

720

W

120

140

140

180

200

220

260

280

300

340

400

450

450

500

500

Weight

14

17

22

25

29

34

43

50

94

123

170

291

430

625

875

note: 100mm or above with worm gear
