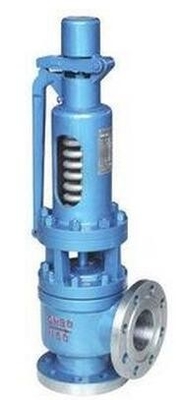

Balanced Bellows Type Pressure Safety Valve With Carbon Steel / Stainless Steel Body

China Balanced Bellows Type Pressure Safety Valve With Carbon Steel / Stainless Steel Body supplier
Balanced Bellows Type Pressure Safety Valve With Carbon Steel / Stainless Steel Body supplier Balanced Bellows Type Pressure Safety Valve With Carbon Steel / Stainless Steel Body supplier

Large Image :  Balanced Bellows Type Pressure Safety Valve With Carbon Steel / Stainless Steel Body

Product Details:

Place of Origin: Shanghai , China
Brand Name: OEM
Certification: ISO 9001
Model Number: WA42

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: Usually packing by plywood case suit for sea delivery
Delivery Time: 1usually within 35 days after received your payment
Payment Terms: T/T advance or L/C at sight
Supply Ability: 90,000pcs per month
Contact Now
Detailed Product Description
Product Name: Pressure Relief Valve Application: Water, Oil, Gas Etc.,
Size: DN15 ~DN200 Pressure: PN16~PN240, Class 150~ 2500
Standard: DIN / ANSI Temperature: -20~430 C
Body: Carbon Steel / Stainless Steel Trim: Stainless Steel / F6 Steillie
Bellow: SS304

Balanced Bellows Type Pressure Safety Valve To Be Set At 1.1 bar(g) With 10 bar(g)



balanced bellows type pressure safety valve



to be set at 1.1 bar(g) with 10 bar(g)



minimum rating pressure discharging capacity 50 Sm3/hr.



Balanced Bellows Type Pressure Safety Valve With Carbon Steel / Stainless Steel Body



PRVS FOR P305A/B
Ø  Body Material: Carbon Steel
Ø  Trim material:  stainless steel
Ø  Inlet rating and connection – 2”X150#
Ø  Outlet rating and connection – 2”X150#
Ø  Orifice area – F
Ø  Operating pressure – 10Kg/cm2
Ø  Set pressure – 15Kg/cm2
Ø  Fluid – LUBE OIL
Ø  Temperature: 45oC

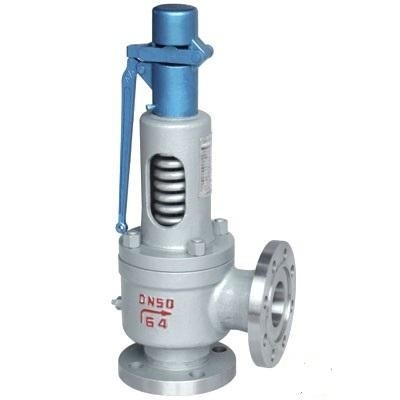

Balanced Bellows Type Pressure Safety Valve With Carbon Steel / Stainless Steel Body



Pressure Relief Valve, Body Material: Carbon Steel,  Trim material:  stainless steel



Balanced Bellows Type Pressure Safety Valve With Carbon Steel / Stainless Steel Body





The valve instantly opens when the pressure in the pipeline exceeds the preset safe level, thus relieving excessive pressure from the pipeline. When the pressure returns to normal, the valve closes slowly, at an adjustable speed. The valves also can be used to sustain upstream pressure to a preset pressure value.



 Explanation of materials for main parts
NO. Name of part A21H-C/A21F  KA21Y-C Materials A21W-P/A21F-P  KA21Y-P Materials A21Y-R    Materials
1    Union 20 1Cr18Ni9Ti 1Cr18Ni12Mo2Ti
2  Union nut 35 2Cr13 1Cr18Ni9Ti
3   Nozzle 35 1Cr18Ni9Ti 1Cr18Ni12Mo2Ti
4   Body 2Cr13 1Cr18Ni9Ti 1Cr18Ni12Mo2Ti
5   Disc 2Cr13/2Cr13+PTFE 1Cr18Ni9Ti/1Cr18nI9Ti+PTFE 1Cr18Ni12Mo2Ti
6    Spring washer 2Cr13 1Cr18Ni9Ti 1Cr18Ni12Mo2Ti
7   Spring 50CrVA 50CrVA Coated  50CrVA Coated
8  Locking nut Q235-A 2Cr13 1Cr18Ni9Ti
9  Spring guide 2Cr13 1Cr18Ni9Ti 1Cr18Ni12Mo2Ti
10  Adjusting nut Q235-A 2Cr13 1Cr18Ni12Mo2Ti
   Sealing surface of material "Y" Co Depositing stellite, "H" D507 Depositing D507, "W" body



 Dimensions (mm)
Type (DN) do d Do M d1 D1 L L1 H

Nominal

diameter

KA21Y-16C A21H-16C A21H-40 15 12 15 20 M27    1.5 G1/2" 30 35 76 66
A21W-16P A21W-40P KA21Y-16P 20 16 20 25 M33    1.5 G3/4" 34 40 87 68
  25 18 25 31 M39    1.5 G1" 40 50 100 105
A21Y-64 15 10 15 25 M39    1.5 G1" 44 50 100 66
A21Y-64P A21Y-100 20 10 20 31 M39    1.5 G1" 44 50 100 68
A21Y-100P 25 12 25 31 M39    1.5 G1" 44 50 100 105
A21W-160 15 8 20 / M24    2 G1" 44 50 100 261
/160P 20 8 25 / M33    2 G1" 44 50 100 261
  25 8 28 / M36    2 G1" 44 50 100 285





Balanced Bellows Type Pressure Safety Valve With Carbon Steel / Stainless Steel Body



 Explanation of materials for main parts
NO. Name of part A28H Materials A28Y-P Materials A28Y-R8       Materials
1   Body HT200 ZG1Cr18Ni9Ti CF8M
2   Nozzle 35 ZG1Cr18Ni9Ti CF8M
3    Adjusting ring 2Cr13 1Cr18Ni9Ti 316
4   Disc 2Cr13 1Cr18Ni9Ti 316
5   Spring 50CrVA 50CrVA Coated  50CrVA Coated
6   Stem 2Cr13 2Cr13 316
7  Adjusting bolt 45 2Cr13 316
8    Cap ZG200-400 ZG200-400 CF8M
  Sealing surface of material D507 Co
Depositing D507 Depositing stellite
10  Adjusting nut Q235-A 2Cr13 1Cr18Ni12Mo2Ti
   Sealing surface of material "Y" Co Depositing stellite, "H" D507 Depositing D507, "W" body
