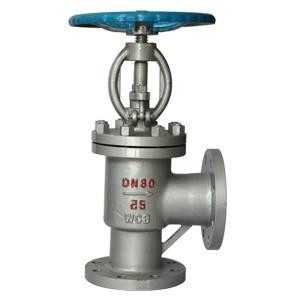

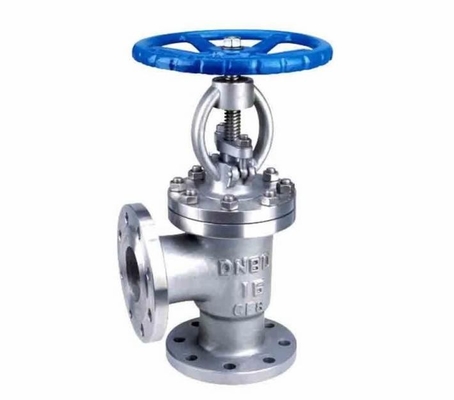

Hand Wheel Manual Flanged DIN Globe Valve Angle Type For Shipboard / Steam

Flange Globe Valves By Angle Type for Shipboard , Hand Wheel Manual





Specification
model					temperature	medium
	PN	Strength test(hydraulic)	Seal test	pneumatic test	(℃)
			(Mpa)	(MPa)
J44W-16P(R)	1.6	2.4	1.8	0.6	≤200	NITRIC ACID
J44W-25P(R)	2.5	3.8	2.8	0.6	≤200	ACETIC ACID
J44W-40P(R)	4	6	4.4	0.6	≤200	NITRIC ACID





Material
part	material
body/bonnet	Cf8,CF3,CF8M,CF3M
disc	304,304L,316,316L
stem	304,304L,316,316L
stem nut	Al bronze
handwheel	cast iron



Dimension
DN	L	D	D1	D2	f	b	zxφd	Do	H1	H2
20	75	105	75	50	3	16	4xφ14	90	188	205
25	80	115	85	53	3	16	4xφ14	100	250	275
32	90	135	100	66	3	18	4xφ18	120	275	303
40	100	145	110	70	3	18	4xφ18	140	303	343
50	115	160	125	90	3	20	4xφ18	160	310	350
65	145	180	145	117	3	20	4xφ18	180	337	372
80	155	195	160	130	3	22	8xφ18	220	425	490
100	175	215	180	150	3	24	8xφ18	240	435	515
125	200	245	210	173	3	24	8xφ18	280	500	585
150	240	280	240	200	3	24	12xφ23	320	554	640
200	300	335	295	248	3	27	12xφ23	400	718	868







selection  of  possible  applications:

(industry)  (power  station)

(flue  gas  puerification  plant)  (gas  supply)

(vacuum  facilities)  (ammonia)

(hot  water)  (cllling&freezing  systme)

(heating  technology)  (steam  system)



Specifications:



Structural Formation	BB-BG-OS & Y
Driving Manner	Hand-Operated
	Electric-Actuated
Design Standard	DIN3356
Face to Face	DIN3202
Flange Ends	DIN2543-2545
Test & Inspection	DIN3230

Notes:The size of serial,valve connecting flange can be design according to customers reguirment.



Products performance specification

Nominal Pressure	Shell Test(Mpa)	Sealing Test(Mpa)	Suitable Temp(oC)	Suitable Medium
(Mpa)
1.6	2.4	1.76	-110~600 oC	Water Oil & Gas
2.5	3.75	2.75
4	6	4.4
6.4	9.6	7.04



Parts	Materials
Body	ASTM A216 GR.WCB
Seat Ring	ASTM A105 + Stellite Faced
Disc	ASTM A105 + 13Cr Faced
Disc Thrust Plate	ASTM A276 Type 420
Disc Nut	ASTM A276 Type 410
Stem	ASTM A182 GR.F6
Bonnet Bolt Nuts	ASTM A194 GR.2H
Bonnet Bolts	ASTM A193 GR.B7
Gasket	Soft Iron + Graphite
Backseat Bushing	ASTM A276 Type 410
Stem Packing	Braided Graphite & Die formed Graphite Ring
Bonnet	ASTM A216 GR.WCB
Eyebolt Pins	Carbon Steel
Gland	ASTM A276 Type 410
Gland Flange	ASTM A216 GR.WCB
Gland Eye Bolts	ASTM A307 GR.B
Eyebolt Nuts	ASTM A194 GR.2H
Yoke Bush	ASTM A439 GR.D-2
Screw	Carbon Steel
Hand Wheel	Ductile Iron
Hand Wheel Nut	ASTM A194 GR.2H
Washer	Carbon Steel
Yoke	ASTM A216 GR.WCB
Yoke Pan Bolt Nuts	ASTM A194 GR.2H
Yoke Pan Bolt	ASTM A193 GR.B7
Bearing	Steel
Lantern Ring On Request	ASTM A276 Type 410



Main Dimensions



Pressure	PN 1.6 Mpa
(Mpa)
Size	15	20	25	32	40	50	65	80	100	125	150	200	250	300	350	400
L	130	150	160	180	200	230	290	310	350	400	480	600	730	850	980	1100
H	240	260	276	285	300	305	354	402	437	496	541	699	815	914	1189	1350
W	120	140	160	160	180	200	200	250	250	300	350	400	450	500	550	600
Weight(kg)	5.2	7.1	7.4	8.5	13	20	25	35	50	75	100	210	446	648	805	1050
Pressure	PN 2.5 Mpa
(Mpa)
Size	15	20	25	32	40	50	65	80	100	125	150	200	250	300	350	400
L	130	150	160	180	200	230	290	310	350	400	480	600	730	850	980	1100
H	240	260	276	285	300	325	363	415	453	505	556	744	864	948	1269	1450
W	120	140	160	160	180	200	200	250	300	350	400	450	500	550	600	600
Weight(kg)	6	7.5	8	9	14	22	27	38	55	82	105	220	450	660	810	1100
Pressure	PN 4.0 Mpa
(Mpa)
Size	15	20	25	32	40	50	65	80	100	125	150	200	250	300	350	400
L	130	150	160	180	200	230	290	310	350	400	480	600	730	850	980	1100
H	240	260	276	285	300	325	370	430	480	532	589	783	888	965	1285	1512
W	120	140	160	160	180	200	200	250	300	350	400	450	500	550	600	600
Weight(kg)	6	7.5	8	9	15	24	30	41	60	85	110	225	460	670	830	1120













Brief introduction:

The globe valve is designed reference to advanced internal and international standard. The body adopt

 sphere configuration, and it also has the feature of good appearance, nice function and superior quality.



Apply from CLASS150 to CLASS1500, and -29℃～425℃(steel), -40℃～550℃(stainless steel).



Using different material, the valve may works with different medium, such as water,oil,gas,steam,carbamide and other medium.



Features:

- Back seal

Back seal design to ensure dependable packing and sealing when valve is fully opened.(Replacement of packing under pressure is not recommended)



- Resist friction

Valve disc is given enough intensity and rigidity. Disc sealing surface may be built-up welded with satellite alloy inlaid or other material responding to the users’ requests .



- Precise design:

Design the body and bonnet according to precise calculation. Body and bonnet have high strength ,

rigid and flow ability .



Mail part & material

	Item Name of parts	material
1	Body	WCB, CF8, CF8M
2	Seat	2Cr13,25+ satellite
3	Disc	2Cr13, 304, 25+satelite
4	Stem	2Cr13, 304, 304L
5	Gasket	Graphite+304, Graphite+08 steel
6	Bonnet	WCB,CF8,CF8M
7	Packing	Graphite,PTFE
8	Hand wheel	HT250,QT450







Technical Specification

- Nominal diameter: 2”-12”

- Applicable Temperature: -29℃～425℃(steel) -40℃～550℃

(stainless steel)

- Nominal pressure: 150Lb 300Lb 600Lb 900Lb 1500Lb

- Applicable Medium: water ,gas,oil,and other causticity medium.

Applications Standard

- Manufacture standard : ANSI B16.34

- Face to face dimension: ANSI B 16.10

- Flange dimension: ANSI B 16.5

- Test: API 598







Description:



Main external and connection dimension





	CLASS150
size(in)	2"	2-1/2"	3"	4"	5"	6"	8"	10"	12"
L,L1-RF.BW(mm)	203	216	214	292	330	356	495	622	698
L2-RTJ(mm)	216	229	254	305	343	368	508	635	711
H(mm)	330	390	410	475	540	585	725	825	940
K(mm)	200	250	250	300	350	350	450	500	600
Weight(Kg)	23	29	40	59	95	115	178	268	385



	CLASS300
size(in)	2"	2-1/2"	3"	4"	5"	6"	8"	10"	12"
L,L1-RF.BW(mm)	267	292	318	355	400	440	533	622	711
L2-RTJ(mm)	283	308	333	371	416	460	549	638	727
H(mm)	350	425	485	520	565	655	825	920	1155
K(mm)	200	250	300	300	350	350	500	600	700
Weight(Kg)	30	45	60	83	135	162	265	375	525



	CLASS600
size(in)	2"	2-1/2"		3"		4"		5"		6"		8"		10"
L,L1-RF.BW(mm)	292	330		356		432		508		559		660		787
L2-RTJ(mm)	295	333		359		435		511		562		664		791
H(mm)	420	490		550		590		620		700		950		1140
K(mm)	250	300		300		350		500		500		600		600
Weight(Kg)	39	61		76		122		210		245		447		692
	CLASS900
size(in)	2"		2-1/2"		3"		4"		5"		6"		8"
L,L1-RF.BW(mm)	368		419		381		457		559		610		737
L2-RTJ(mm)	371		422		384		460		562		613		740
H(mm)	495		540		600		655		670		780		1050
K(mm)	300		350		350		500		500		350*		350*
Weight(Kg)	96		79		117		178		305		355		730
Note: Use "*", mean have fixed the gear box.



	CLASS1500
size(in)	2"	2-1/2"	3"	4"	6"
L,L1-RF.BW(mm)	368	419	470	546	705
L2-RTJ(mm)	371	422	473	549	711
H(mm)	550	582	625	750	925
K(mm)	300	350	400	450	600
Weight(Kg)	116	125	145	210	475



Design Features
Straight pattern body design
Tapered, globe, or plug disc
Renewable or welded seat
Bolted bonnet or pressure sealed bonnet, back seal structure
Impact handwheel for 10" and above
Extended stem design for low temperature
ISO top flange for Bare stem globe valve.
