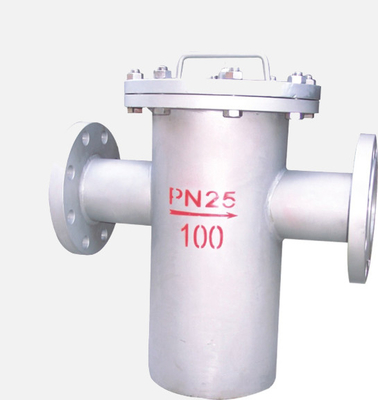

Steel Oi l / Gas Water Meter Strainer 150lbs / PN16 , Straight Basket Type Strainer

Steel Oi l / Gas Water Meter Strainer 150lbs / PN16 , Straight Basket Type Strainer
Steel Oi l / Gas Water Meter Strainer 150lbs / PN16 , Straight Basket Type Strainer Steel Oi l / Gas Water Meter Strainer 150lbs / PN16 , Straight Basket Type Strainer

Large Image :  Steel Oi l / Gas Water Meter Strainer 150lbs / PN16 , Straight Basket Type Strainer

Product Details:
Place of Origin: Shanghai, China
Brand Name: OEM
Certification: WRAS/ ISO 9001
Model Number: SRB 14 / SRB34
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: Usually packing by plywood case suit for sea delivery
Delivery Time: 1usually within 35 days after received your payment
Payment Terms: T/T advance or L/C at sight
Supply Ability: 90,000pcs per month
Detailed Product Description
End Connection:: Flange Connect Design Pressure.: PN 10 ~ 40 / 150lbs
Filter Mesh Size.: 20/40/60/80/100 Mesh Etc., Design Specific Fluid Gravity.: Design Specific Fluid Gravity.
Body: Steel Filter/ Screen: SS 304 / SS 316 / Stainless Steel
Size: DN 50~ DN1000 Medium: Water, Oil, Gas Etc.,
High Light:

pipeline strainers

,

industrial water strainers

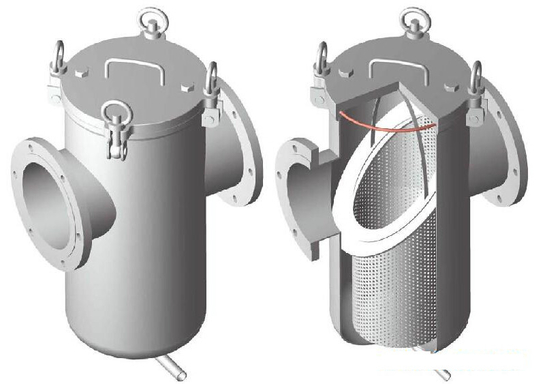

Straight Basket Type Strainer Flanged End Connect Made By Steel





Installstion dimensions



  L D0   SRB14 SRB34 High-low type
DN(mm) Pipe closure Straight through type
Nominal
pressure   H H1 H H1 H2
25 180 76 M14×1.5 260 160 280 110 180
32 200 76 M14×1.5 270 160 285 110 180
40 260 108 M14×1.5 300 170 340 120 220
50 260 108 M14×1.5 300 170 340 120 220
65 330 133 M14×1.5 360 210 400 160 270
80 340 159 M14×1.5 400 250 460 180 320
100 400 219 M14×1.5 470 300 550 220 390
125 480 273 M14×1.5 550 360 630 260 450
150 500 273 M14×1.5 630 420 720 310 530
200 560 325 M14×1.5 780 530 900 390 670
250 660 426 M20×1.5 930 640 1070 480 800
300 750 478 M20×1.5 1200 840 1360 640 1040
400 850 530 M35×2.0 1400 920 1500 600 1100
500 1052 630 M35×2.0 1500 1050 1600 640 1200
600 1380 800 M35×2.0 2000 1400 2000 700 1300



Construction material.     :
  body:  A 216 WCB
  flange: A 216 WCB
  cover: A 216 WCB
  bolt/nut: A 193-B7
  gasket: rubber
  screen: SS304
  drain: A105



End flange size and rating
end connection: ANSI 150# RF(OR DIN PN16 RF)
Design Temperature. 0 degree~120 degree ( C )
Design pressure. 150lbs/PN16
Filter mesh size. as your requirement(please kindly advise us)
Opening area 0.042 square meter
Design specific fluid gravity. 0.8~1.1



Steel Oi l / Gas Water Meter Strainer 150lbs / PN16 , Straight Basket Type Strainer 0



Description



The strainer may be used on all types of pipelines to collect granulated foreign substances and

contaminants collected. It can improve the clearance in the medium, and prolong the life of

valves and other equipments. It is suitable for wafer, petroleum and steam.
