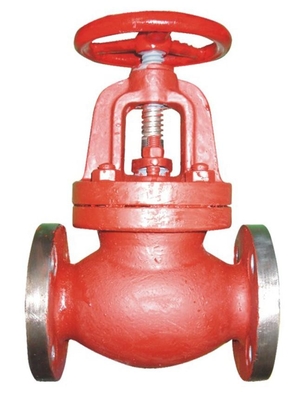

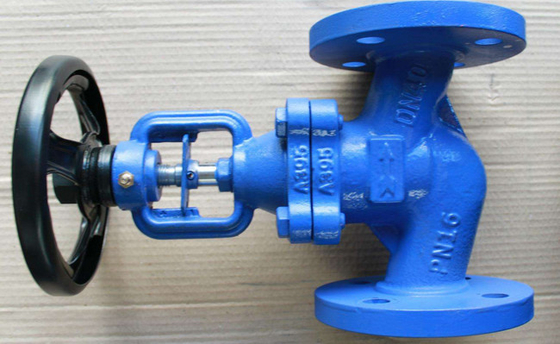

Bronze Trim Cast Iron Flanged Globe Valve Nodular DN65 PN16 Part No. DIN 3202-F1

Bronze Trim Cast Iron Flanged Globe Valve Nodular DN65 PN16 Part No. DIN 3202-F1

    • Bronze Trim Cast Iron Flanged Globe Valve Nodular DN65 PN16  Part No. DIN 3202-F1
    • Bronze Trim Cast Iron Flanged Globe Valve Nodular DN65 PN16  Part No. DIN 3202-F1
  • Bronze Trim Cast Iron Flanged Globe Valve Nodular DN65 PN16  Part No. DIN 3202-F1

    Product Details:

    Place of Origin: Shanghai , China
    Brand Name: OEM
    Certification: ISO 9001/ API 6D
    Model Number: J41-16

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: negotiation
    Packaging Details: Usually packing by plywood case suit for sea delivery
    Delivery Time: 1usually within 35 days after received your payment
    Payment Terms: T/T advance or L/C at sight
    Supply Ability: 90,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Globe Valve Application: Oil, Gas, Water, Steam Etc.,
    Size: DN65 Pressure: PN16~160/ 150lbs~2500lbs/JIS 10K/20K
    Standard: API 6D/ ANSI 16.5 B/ JIS 20K/JIS 10K Temperature: -29~120C
    Body: Cast Iron Trim: Bronze

    Valve, Globe, Cast Iron, Nodular, DN65 PN16, Part No. DIN 3202-F1 , Bronze Trim



    VALVE, GLOBE, CAST IRON,



    NODULAR, DN65 PN-16, Part No. 3202-F1



    GLOBE VALVE DIN NODULAR CAST IRON



    BRONZE TRIM



    Face To Face Length =290mm



    Body : GGG 40.3



    FLANGE DIAM-185 – 4 HOLES



    Features:

    Back seal

    Back seal design to ensure dependable packing and sealing when valve is fully opened.(Replacement of packing under pressure is not recommended)



    Resist friction

    Valve disc is given enough intensity and rigidity. Disc sealing surface may be built-up welded with satellite alloy

     inlaid or other material responding to the users’ requests .



    Precise design:

    Design the body and bonnet according to precise calculation. Body and bonnet have high strength ,

    rigid and flow ability .





    selection  of  possible  applications:
      (industry)  (power  station)
    (flue  gas  puerification  plant)  (gas  supply)
       (vacuum  facilities)  (ammonia)
       (hot  water)  (cllling&freezing  systme)
       (heating  technology)  (steam  system)



    Specifications:



    Structural Formation BB-BG-OS & Y
    Driving Manner Hand-Operated
    Electric-Actuated
    Design Standard DIN3356
    Face to Face DIN3202
    Flange Ends DIN2543-2545
    Test & Inspection DIN3230

    Notes:The size of serial,valve connecting flange can be design according to customers reguirment.



    Products performance specification

    Nominal Pressure Shell Test(Mpa) Sealing Test(Mpa) Suitable Temp(oC) Suitable Medium
    (Mpa)
    1.6 2.4 1.76 -110~600 oC Water Oil & Gas
    2.5 3.75 2.75
    4 6 4.4
    6.4 9.6 7.04



    Parts Materials
    Body ASTM A216 GR.WCB
    Seat Ring ASTM A105 + Stellite Faced
    Disc ASTM A105 + 13Cr Faced
    Disc Thrust Plate ASTM A276 Type 420
    Disc Nut ASTM A276 Type 410
    Stem ASTM A182 GR.F6
    Bonnet Bolt Nuts ASTM A194 GR.2H
    Bonnet Bolts ASTM A193 GR.B7
    Gasket Soft Iron + Graphite
    Backseat Bushing ASTM A276 Type 410
    Stem Packing Braided Graphite & Die formed Graphite Ring
    Bonnet ASTM A216 GR.WCB
    Eyebolt Pins Carbon Steel
    Gland ASTM A276 Type 410
    Gland Flange ASTM A216 GR.WCB
    Gland Eye Bolts ASTM A307 GR.B
    Eyebolt Nuts ASTM A194 GR.2H
    Yoke Bush ASTM A439 GR.D-2
    Screw Carbon Steel
    Hand Wheel Ductile Iron
    Hand Wheel Nut ASTM A194 GR.2H
    Washer Carbon Steel
    Yoke ASTM A216 GR.WCB
    Yoke Pan Bolt Nuts ASTM A194 GR.2H
    Yoke Pan Bolt ASTM A193 GR.B7
    Bearing Steel
    Lantern Ring On Request ASTM A276 Type 410

    Bronze Trim Cast Iron Flanged Globe Valve Nodular DN65 PN16  Part No. DIN 3202-F1



    Main Dimensions



    Pressure PN 1.6 Mpa
    (Mpa)
    Size 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350 400
    L 130 150 160 180 200 230 290 310 350 400 480 600 730 850 980 1100
    H 240 260 276 285 300 305 354 402 437 496 541 699 815 914 1189 1350
    W 120 140 160 160 180 200 200 250 250 300 350 400 450 500 550 600
    Weight(kg) 5.2 7.1 7.4 8.5 13 20 25 35 50 75 100 210 446 648 805 1050


    Pressure PN 2.5 Mpa
    (Mpa)
    Size 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350 400
    L 130 150 160 180 200 230 290 310 350 400 480 600 730 850 980 1100
    H 240 260 276 285 300 325 363 415 453 505 556 744 864 948 1269 1450
    W 120 140 160 160 180 200 200 250 300 350 400 450 500 550 600 600
    Weight(kg) 6 7.5 8 9 14 22 27 38 55 82 105 220 450 660 810 1100


    Pressure PN 4.0 Mpa
    (Mpa)
    Size 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350 400
    L 130 150 160 180 200 230 290 310 350 400 480 600 730 850 980 1100
    H 240 260 276 285 300 325 370 430 480 532 589 783 888 965 1285 1512
    W 120 140 160 160 180 200 200 250 300 350 400 450 500 550 600 600
    Weight(kg) 6 7.5 8 9 15 24 30 41 60 85 110 225 460 670 830 1120



    Bronze Trim Cast Iron Flanged Globe Valve Nodular DN65 PN16  Part No. DIN 3202-F1



    Bronze Trim Cast Iron Flanged Globe Valve Nodular DN65 PN16  Part No. DIN 3202-F1









    Brief introduction:

    The globe valve is designed reference to advanced internal and international standard. The body adopt

     sphere configuration, and it also has the feature of good appearance, nice function and superior quality.



    Apply from CLASS150 to CLASS1500, and -29℃~425℃(steel), -40℃~550℃(stainless steel).



    Using different material, the valve may works with different medium, such as water,oil,gas,steam,carbamide

    and other medium.





    Mail part & material



    Item Name of parts

    material

    1

    Body

    WCB, CF8, CF8M

    2

    Seat

    2Cr13,25+ satellite

    3

    Disc

    2Cr13, 304, 25+satelite

    4

    Stem

    2Cr13, 304, 304L

    5

    Gasket

    Graphite+304, Graphite+08 steel

    6

    Bonnet

    WCB,CF8,CF8M

    7

    Packing

    Graphite,PTFE

    8

    Hand wheel

    HT250,QT450







    Technical Specification

    -Nominal diameter: 2”-12”

    -Applicable Temperature: -29℃~425℃(steel) -40℃~550℃

    (stainless steel)

    -Nominal pressure: 150Lb 300Lb 600Lb 900Lb 1500Lb

    -Applicable Medium: water ,gas,oil,and other causticity medium.

    Applications Standard

    -Manufacture standard : ANSI B16.34

    -Face to face dimension: ANSI B 16.10

    -Flange dimension: ANSI B 16.5

    -Test: API 598







    Description:



    Main external and connection dimension



    Bronze Trim Cast Iron Flanged Globe Valve Nodular DN65 PN16  Part No. DIN 3202-F1



    CLASS150

    size(in)

    2"

    2-1/2"

    3"

    4"

    5"

    6"

    8"

    10"

    12"

    L,L1-RF.BW(mm)

    203

    216

    214

    292

    330

    356

    495

    622

    698

    L2-RTJ(mm)

    216

    229

    254

    305

    343

    368

    508

    635

    711

    H(mm)

    330

    390

    410

    475

    540

    585

    725

    825

    940

    K(mm)

    200

    250

    250

    300

    350

    350

    450

    500

    600

    Weight(Kg)

    23

    29

    40

    59

    95

    115

    178

    268

    385





    CLASS300

    size(in)

    2"

    2-1/2"

    3"

    4"

    5"

    6"

    8"

    10"

    12"

    L,L1-RF.BW(mm)

    267

    292

    318

    355

    400

    440

    533

    622

    711

    L2-RTJ(mm)

    283

    308

    333

    371

    416

    460

    549

    638

    727

    H(mm)

    350

    425

    485

    520

    565

    655

    825

    920

    1155

    K(mm)

    200

    250

    300

    300

    350

    350

    500

    600

    700

    Weight(Kg)

    30

    45

    60

    83

    135

    162

    265

    375

    525





    CLASS600

    size(in)

    2"

    2-1/2"

    3"

    4"

    5"

    6"

    8"

    10"

    L,L1-RF.BW(mm)

    292

    330

    356

    432

    508

    559

    660

    787

    L2-RTJ(mm)

    295

    333

    359

    435

    511

    562

    664

    791

    H(mm)

    420

    490

    550

    590

    620

    700

    950

    1140

    K(mm)

    250

    300

    300

    350

    500

    500

    600

    600

    Weight(Kg)

    39

    61

    76

    122

    210

    245

    447

    692



    CLASS900



    size(in)

    2"

    2-1/2"

    3"

    4"

    5"

    6"

    8"



    L,L1-RF.BW(mm)

    368

    419

    381

    457

    559

    610

    737



    L2-RTJ(mm)

    371

    422

    384

    460

    562

    613

    740



    H(mm)

    495

    540

    600

    655

    670

    780

    1050



    K(mm)

    300

    350

    350

    500

    500

    350*

    350*



    Weight(Kg)

    96

    79

    117

    178

    305

    355

    730



    Note: Use "*", mean have fixed the gear box.







    CLASS1500

    size(in)

    2"

    2-1/2"

    3"

    4"

    6"

    L,L1-RF.BW(mm)

    368

    419

    470

    546

    705

    L2-RTJ(mm)

    371

    422

    473

    549

    711

    H(mm)

    550

    582

    625

    750

    925

    K(mm)

    300

    350

    400

    450

    600

    Weight(Kg)

    116

    125

    145

    210

    475
