Nbr Carbon Steel Gate Valve Fire Fighting Metal Seated Gate Valve

Nbr Carbon Steel Gate Valve Fire Fighting Metal Seated Gate Valve
Nbr Carbon Steel Gate Valve Fire Fighting Metal Seated Gate Valve

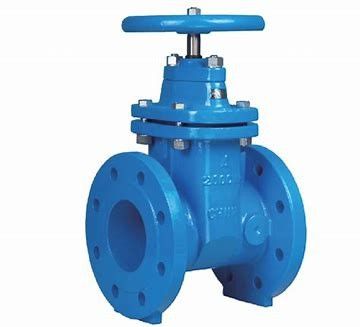

Large Image :  Nbr Carbon Steel Gate Valve Fire Fighting Metal Seated Gate Valve

Product Details:
Place of Origin: Shanghai , China
Brand Name: OEM
Certification: WRAS / UL / CE / FM / ISO 9001
Model Number: Z45X
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: ruggedization plywood case suit for sea delivery and protect the goods
Delivery Time: within 25 days after payment
Payment Terms: L/C, T/T
Supply Ability: 99,000 pcs / month
Detailed Product Description
Name: Metal Seated Gate Valve Length: DIN F4 / AWWA C509 C515 MJ / JIS
Flange: DIN 3352 , JIS 10 K, EN 7005.2 Temperature: -20 ~ 120 C
Application: Fire Fighting Wedge: Iron Coating EPDM / NBR
Pressure: PN 16 , PN10 Test: Test Strength By 2.4Mpa
High Light:

resilient seat gate valve

,

flanged gate valve

Nbr Carbon Steel Gate Valve Fire Fighting Metal Seated Gate Valve



Metal Seated Gate Valve FEATURES



⊙ Anti- corrosion

Both inner and outer are coated with non-toxic powder epoxy resin to strengthen the capacity of Corrosion resisting and raise the quality

of water supply.



⊙ Ruggedization

The older ductile iron valve is easy to rupture after being impacted by nonego. It can stop

rupture depend on the good mechanics capability of ductile iron .



⊙ Three “○” sealed ring

With the three “O” – rings, the leakage can be greatly reduced and the “O” – ring can be

replaced under this condition with pressure and without stopping water. The thrust axletree

reduces the frictional resistance and lowers the operational torque. And it can be switch seal

ring without opening and closing.



⊙ Rigid round body

The body is founded minutely, the rigid geometry size ensure inner sealing of valve without

any process.



⊙ Light weight

This body is made of ductile iron, it is 20%-30% lighter than the olds. Easily to fixing and

servicing.


Metal Seated Gate Valve Specifications:



NO

Part name

Material

1

Body

Ductile cast iron

2

Wedge

Ductile cast iron + EPDM

3

Stem nut

ZCuAl10Fe3 Gunmetal

4

Gasket

EPDM

5

Bonnet

Ductile cast iron

6

Gland gasket

ZCuAl10Fe3 Gunmetal

7

Stem

2Cr13  S.S.x 20Cr13

8

Gland

Ductile cast iron

9

Rubber wiper

EPDM/NBR

10

Hand wheel

Ductile cast iron




APPLICABLE STANDARDS

⊙ American Standard
Design to ANSI/AWWA C509
Face to face dimension to ASME B16.10-2000(ISO 3 series)
Flange and drilling To SME/ANSI B16.42-1998


⊙ British Standard
Design to BS5163,BS5150
Face to face dimension to BS5163(ISO 3series,ISO19 series)
Flange and drilling To BS4504 part1(EN1092)


⊙ Germany Standard
Design to DIN3352
Face to face dimension to DIN3202(F4:ISO 14 series;F5: ISO 15 series)
Flange and drilling to BS EN1092
