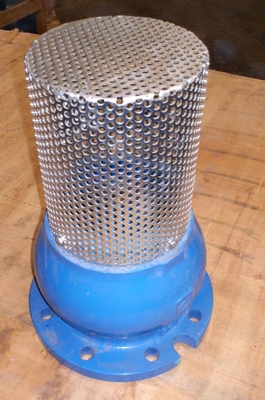

Lift Type Silent Check Stainless Steel Foot Valve DIN / BS / AWWA / JIS

Lift Type Silent Check Stainless Steel Foot Valve DIN / BS / AWWA / JIS
Lift Type Silent Check Stainless Steel Foot Valve DIN / BS / AWWA / JIS Lift Type Silent Check Stainless Steel Foot Valve DIN / BS / AWWA / JIS

Large Image :  Lift Type Silent Check Stainless Steel Foot Valve DIN / BS / AWWA / JIS

Product Details:
Place of Origin: Shanghai , China
Brand Name: OEM
Certification: WRAS/ ISO 9001
Model Number: H42X
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: Usually packing by plywood case suit for sea delivery
Delivery Time: 1usually within 35 days after received your payment
Payment Terms: T/T advance or L/C at sight
Supply Ability: 90,000pcs per month
Detailed Product Description
Application: Sewage, Water Etc., Size: DN15 ~DN300
Pressure: PN2.5/6/10/16/125lbs/150lbs/JIS 5K/JIS10K Standard: DIN/BS/AWWA/JIS
Temperature: -20~120 C Body: Cast Iron/ Ductile Iron/ Stainless Steel
Strainer/filter: Stainless Steel/ SS304/SS316 Surface: Epoxy Powder Coating / Painting
High Light:

flanged foot valve

,

water foot valve

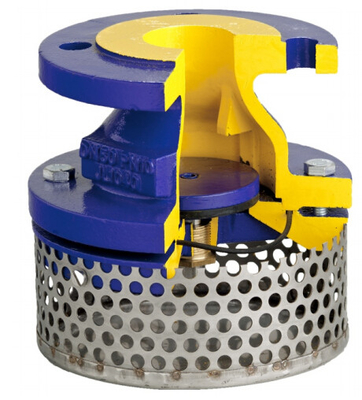

Cast Iron Lift Type Silent Check Foot Valve With Stainless Steel SS304 Strainer / Bottom Valve



Working Principle

   Foot valve consists of cover, disc, bush, seal ring, etc.  Water enter into the valve body through cover. Under the influence of flow pressure, disc will be opened. When stop, pressure in the oulet pipe will close

 the disc instantly, water will not flow back to water source. It effects the functions of smooth pumping and saves water loss.



Description:

 Foot valve is a kind of energy saving valve, usually installed at the bottom of pump suction pipe, to

prevent medium in the pipe flow back to water source. There are many inlet holes and reinforcing ribs

in the valve cover, so the pipe will not be easily clogged up.



  Material

Body

Cast iron/Ductile iron

Disc

Cast iron/Ductile iron

Disc ring

iron with NBR seal

Spring

Stainless steel/Steel with zinc

Screen

Stainless steel / Steel zinc plated





  Design

  Face to face is according to ISO STANDARD

  Flange drilled is according to DIN,BS,JIS,ANSI etc

  Test

Working pressure

PN10/PN16

Class125/150

Shell pressure

PN15/PN24

300PSI

Seat pressure

PN11/PN17.6

200PSI



Applications:



* unidirectional valve used to prevent medium from backflow



* only used at the inlet of various pumps



* prevent impurity enter into pipes



Lift Type Silent Check Stainless Steel Foot Valve DIN / BS / AWWA / JIS 0
