Product Name: Angle Type Fast Sacking Mud Valve Application: Water,,sewage
Size: DN80 ~DN400 Pressure: PN16 / 150lbs / JIS10K
Standard: DIN / BS / AWWA / JIS /GB Temperature: -20~120 C
Body: Cast Iron/ Ductile Iron Diaphragm: EPDM / NBR
High Light:

pressure sustaining valve

,

pump control valve

L Shaped Cup Pressure Regulator Valve 400mm Durable Sealing Performance




1.The valve hydraulic cylinder piston rod is L-shaped cups,sealing performance, durability,

   the valve seal pair is also rubber seal,no leakage.


2.Can also power two to four-way solenoid valve for remote control.


3.Easy to operate,safe and reliable.


4.It is a quick source or air source by a hydraulic actuator angle for the cut-off type valve





Technical Specification
Nominal Pressure:0.6MPa,1.0MPa
DN:80~400mm
Minimum Driving Pressure:0.15MPa
Medium: water,sewage
Work temperature: 0~80℃
Design Standard:BS5163
Flange Standard:BS EN 1092
OTHER STANDARD ARE AVAILABLE UPON REQUEST.



L Shaped Cup Pressure Regulator Valve 400mm Durable Sealing Performance 0

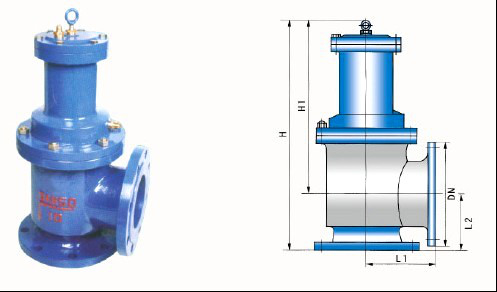

Dimension                                                                                                             Unit:mm
DN             80            100       150          200           250          300         350        400
 L              480            500       620         735           805           940       1100       1200
L1            135            145       175           225          260           280       305          340
L2             125           125        145          185          205           245        270          310

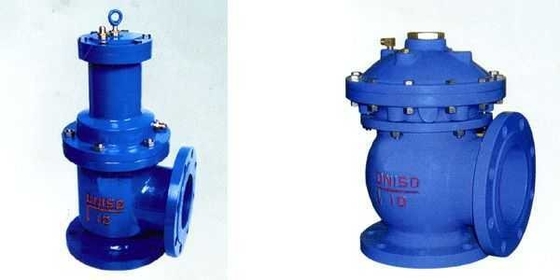

Angle Type Diaphragm Sludge Valve  is widely used in  water treatment plant to drainage away the dirty water and the waste water.


Features
low wear


light weight


easy and quick to open


easy to fix and service



Technical Specification
Nominal Pressure:0.6MPa,1.0MPa
DN:50~300mm
Medium: water,sewage
Work temperature: 0~80℃
Design Standard:BS5163
Flange Standard:BS EN 1092
OTHER STANDARD ARE AVAILABLE UPON REQUEST.



L Shaped Cup Pressure Regulator Valve 400mm Durable Sealing Performance 1



Part Material
No. PART NAME Material
1 Body   Cast Iron
2 Bonnet Ductile iron
3 Spring Stainless Steel
4 Spring Plate Stainless Steel
5 Diaphragm Nylon Rubber



Dimension                                                                       Unit:mm
DN            50            65           80           100            125          150          200         250         300
H              125          145         155          175            200          225          275        325         375





The utility model discloses a hydraulic air cylinder braking angle type mud valve which comprises a hydraulic oil cylinder. The hydraulic oil cylinder is fixedly installed on the angle type mud valve. Guide grooves are formed in a wall of the hydraulic oil cylinder. Sliding feet are arranged on a piston edge in the oil cylinder and are matched with the guide grooves in a sliding mode. A piston rod is fixedly connected with a piston and penetrates and contacts the wall of the angle type mud valve in the sliding mode. A rubber ring is fixedly arranged on the middle portion of the wall of the angle type mud valve and is sleeved on the piston rod. The end portion of the piston rod is connected with a valve plate. Rubber is coated on the valve plate. The valve plate is connected with a guide cylinder. A reverse lug is arranged on the end portion of the piston rod and is connected with the guide cylinder is the sliding mode. A spring is arranged between an end face of the piston rod and the valve plate. The end face of the piston rod is in elastic connection with the valve plate. Hydraulic pressure or pneumatic force is used as a starting force so that opening speed is fast, resistance coefficient is small, opening and closing time is short, sealing performance reliability is good, the rubber ring plays a role of protecting the angle type mud valve and a hole penetrating through the piston rod is preventing from becoming bigger
