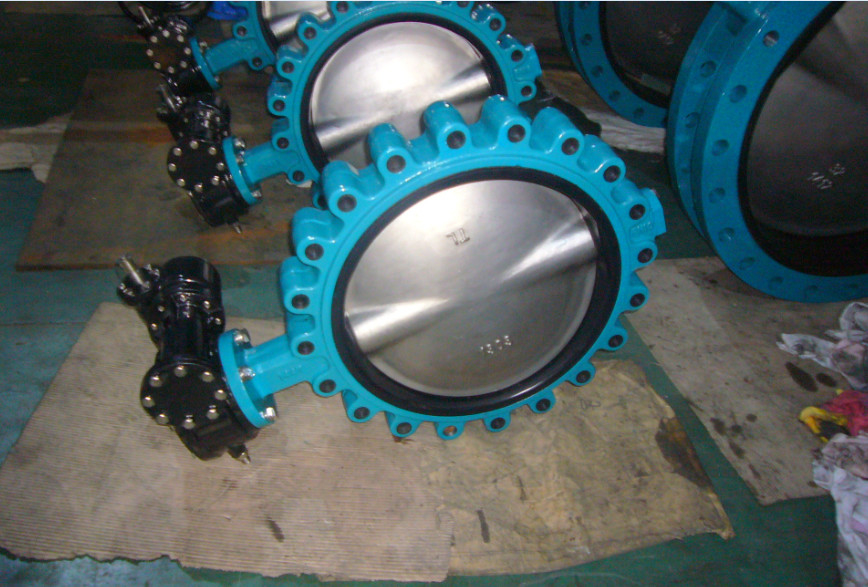

Full Bore Butterfly Valve Ss304 , Cast Iron Butterfly Control Valve

Full Bore Butterfly Valve Ss304 , Cast Iron Butterfly Control Valve
Full Bore Butterfly Valve Ss304 , Cast Iron Butterfly Control Valve

Large Image :  Full Bore Butterfly Valve Ss304 , Cast Iron Butterfly Control Valve

Product Details:
Place of Origin: Shanghai , China
Brand Name: OEM
Certification: ISO 9001 / CE
Model Number: D71X / D371X
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: negotiation
Packaging Details: Usually packing by plywood case suit for sea delivery
Delivery Time: 1usually within 35 days after received your payment
Payment Terms: T/T advance or L/C at sight
Supply Ability: 90,000pcs per month
Detailed Product Description
Type: Butterfly Valve Ss304 Advantage: Small Torque
Name: Butterfly Control Valve Pressure: PN10
Standard: DIN / BS / AWWA / JIS Disc/wedge: Ductile Iron/ Stainless Steel/ SS304/SS316
High Light:

ductile iron butterfly valve

,

water butterfly valves

Full Bore Butterfly Valve Ss304 , Cast Iron Butterfly Control Valve​



Butterfly Valve Ss304 Introduction



Wafer Style Butterfly Valve , used in Chemical/Petrochemical Processing, Food & Beverage etc.,



Wafer butterfly valves adopt different material, different seal ring, suitable for different medium. Widely

used in Chemical/Petrochemical Processing, Food & Beverage, Power & Utilities, Pulp & Paper etc.


Key feature and benefits


Light weight;Good wear resistance;Compact structure;Low flow resistance;Small operation torque



Butterfly Valve Ss304 Parameters



Part Material
NO. PART NAME MATERIAL
1 Body WCB,Cast Iron
2 Disc WCB,Cast Iron,SS304
3 Shaft 2Cr13,SS304,SS316
4 Seal Ring EPDM/NBR
5 Paking O-ring



Technical Specification
Nominal Pressure:1.0~1.6MPa
DN:40~1000mm
Medium: water,oil,gas
Work temperature: ≤120℃
Design Standard:BS5163
Flange Standard:BS EN 1092
OTHER STANDARD ARE AVAILABLE UPON REQUEST.



DN 50 65 80 100 125 150 200 250 300 350 400
L 43 46 46 52 56 56 60 68 78 78 102
H 63 70 83 105 115 137 164 206 230 248 289
Ho 306 321 346 387 411 447 572 646 738 761 877
A 180 180 180 180 180 270 270 270 380 380 450
B 200 200 200 200 200 280 280 280 420 420 470
D0(1.0MPa) 110 130 150 170 200 225 295 350 400 445 495
N-d(1.0MPa) 4-14 4-14 4-18 4-18 8-18 8-18 8-18 12-18 12-22 12-22 16-22
D0(1.6MPa) 125 145 160 180 210 240 295 350 410 460 515
N-d(1.6MPa) 4-18 4-18 8-18 8-18 8-18 8-22 8-22 12-22 12-22 16-22 16-22





Wafer Style Butterfly Valve Specifications:



Wafer Butterfly Valve


1. Optional cast iron  body and WPDM seat


2 . Smaller torque, better sealing




Size: DN50 - 3000
Temperature: -15℃ - 150℃
Pressure: 1.0MPa/1.6MPa

 Product Advantages:

1) Small in size and light in weight and maintaince.
   It can be mounted whereever needed.

2) Simple, compact structure, quick 90 degree on-off operation.

3) Disc has two-way bearing, perfect seal, without leakage under
   the pressure test.

4) Flow curve tending to straight-line. Excellent regulation performance.

5) Various kinds of materials, applicable to different medium.

6) Strong wash and brush resistance and can fit to bad working condition.

Full Bore Butterfly Valve Ss304 , Cast Iron Butterfly Control Valve 0
