Flexible Float Pressure Reducer Valve , Angle Water Level Valve

Flexible Float Pressure Reducer Valve , Angle Water Level Valve
Flexible Float Pressure Reducer Valve , Angle Water Level Valve Flexible Float Pressure Reducer Valve , Angle Water Level Valve

Large Image :  Flexible Float Pressure Reducer Valve , Angle Water Level Valve

Product Details:
Place of Origin: Shanghai , China
Brand Name: OEM
Certification: ISO 9001
Model Number: 100A
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: Usually packing by plywood case suit for sea delivery
Delivery Time: 1usually within 35 days after received your payment
Payment Terms: T/T advance or L/C at sight
Supply Ability: 90,000pcs per month
Detailed Product Description
Product Name: Angle Water Level Setting Valve Application: Water,,sewage
Size: DN15 ~DN300 Pressure: PN16 / 150lbs / JIS10K
Standard: DIN / BS / AWWA / JIS /GB Temperature: -20~120 C
Body: Cast Iron/ Ductile Iron Diaphragm: EPDM / NBR
High Light:

pressure sustaining valve

,

pump control valve

Flexible Float Pressure Reducer Valve , Angle Water Level Valve







The valve body is divided into two chambers by a special strengthening nylon diaphragm.



When the liquid level is up to the setting position, the ball float guide valve will close.



Once the pressure in upper chamber is greater than the nether one, the valve will stop to supply water.



In turn, the valve will refill the water pool.Without pipe connection, it is easy to install and saves installation space. Besides,



it is simple to maintain, flexible and durable, and accurate in control of liquid level.



The water level is not subject to water pressure and the closing is tight.



It is reliable in performance and low in cost.



The ball float can be installed in any position with the height and distance of water pool.



Technical Specification
Nominal Pressure:0.6MPa,1.0MPa
DN:50~300mm
Medium: water,sewage
Work temperature: 0~80℃
Design Standard:BS5163
Flange Standard:BS EN 1092
OTHER STANDARD ARE AVAILABLE UPON REQUEST.





Flexible Float Pressure Reducer Valve , Angle Water Level Valve 0

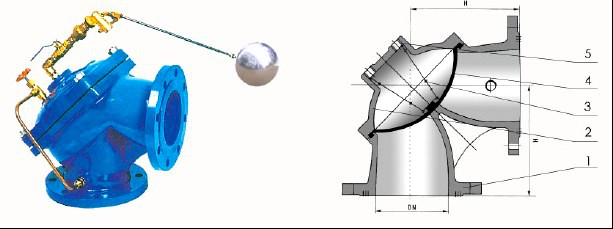

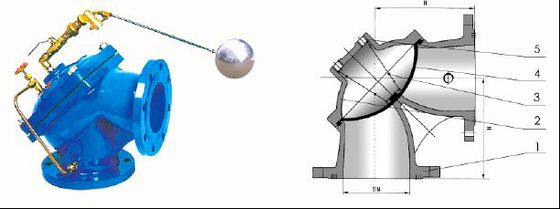

Part Material
No. PART NAME Material
1 Body   Cast Iron, Ductile Cast Iron
2  Bonnet  Cast Iron, Ductile Cast Iron
3 Spring Stainless Steel
4 Spring Plate Stainless Steel
5 Diaphragm Nylon Rubber

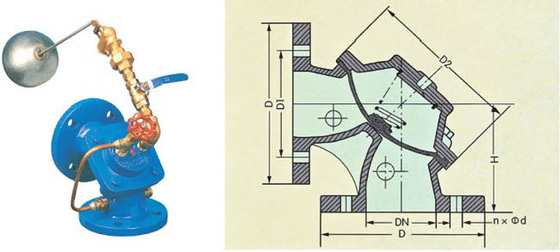

Dimension                                                                       Unit:mm
DN           50            65           80           100            125          150          200         250         300
H             125          145         155          175            200          225          275        325         375





The utility model discloses a hydraulic air cylinder braking angle type mud valve which comprises a hydraulic oil cylinder. The hydraulic oil cylinder is fixedly installed on the angle type mud valve. Guide grooves are formed in a wall of the hydraulic oil cylinder. Sliding feet are arranged on a piston edge in the oil cylinder and are matched with the guide grooves in a sliding mode. A piston rod is fixedly connected with a piston and penetrates and contacts the wall of the angle type mud valve in the sliding mode. A rubber ring is fixedly arranged on the middle portion of the wall of the angle type mud valve and is sleeved on the piston rod. The end portion of the piston rod is connected with a valve plate. Rubber is coated on the valve plate. The valve plate is connected with a guide cylinder. A reverse lug is arranged on the end portion of the piston rod and is connected with the guide cylinder is the sliding mode. A spring is arranged between an end face of the piston rod and the valve plate. The end face of the piston rod is in elastic connection with the valve plate. Hydraulic pressure or pneumatic force is used as a starting force so that opening speed is fast, resistance coefficient is small, opening and closing time is short, sealing performance reliability is good, the rubber ring plays a role of protecting the angle type mud valve and a hole penetrating through the piston rod is preventing from becoming bigger
