|Size:||DN50 ~ DN 1000||Pressure:||PN10, PN 16|
|Standard:||DIN F4 / F5 / BS5163A||Temperature:||-20 ~ 80 C|
|Body:||Ductile Iron GGG40 , DI GGG 50, Cast Iron GG25||Wedge:||Iron Coating EPDM / NBR|
|Monitor Switch:||Visual And Can Choice By Electric|
resilient seat gate valve,
flanged gate valve

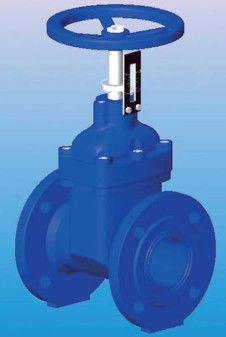

50mm - 1000mm Resilient Seated Gate Valve With The Facility To Install A Monitor Switch
Gate Valves With The Facility To Install A Monitor Switch, Size 50mm Upto 1000mm
Description BS 5163 Type A, BS EN 1074
Open / Shut position Indicator
Face to face dimension in accordance with BS5163
Flange drilling in accordance with BS EN 1092 PN16 raised face
Optional anti tamper switch
Optional 1/2” BSP Plugged tapping
Body Cast Iron, EN1531 EN-GJL-250
Stem Stainless Steel BS970 416 S21
Wedge Cast Iron, EPDM coated
Bonnet Cast Iron DN1691 GG25
Handwheel Ductile Iron GG40
Max Working Pressure: 16 Bar
Shell Test Pressure: 24 Bar
A. Stem sealing
Three independent stem seals offering triple safety:
• A NBR wiper ring protects against dirt from outside.
• A polyamid bearing with 4 NBR O-rings protects against galvanic corrosion.
• An EPDM rubber manchette sealing acts as the main hydraulic seal to the flow.
B. Body/bonnet connection
The unique assembly of the valve body and bonnet ensures a durable tightness:
• A round rubber bonnet gasket fits into a recess in the valve bonnet preventing it
from being blown out by pressure surges.
• The stainless steel bonnet bolts are countersunk in the valve bonnet, encircled
by the bonnet gasket and sealed with hot melt. Thus there is no risk of corrosion
as the bolts are not exposed to the medium or soil.
C. Wedge nut
The fixed, integral wedge nut reduces the number of movable valve parts thus
minimizing the risk of corrosion and malfunction. The wedge nut is made of
dezincification resistant brass with lubricating abilities providing optimum compatibility
with the stainless steel stem.
D. Vulcanized wedge
The ductile iron core is fully vulcanized with drinking water approved EPDM rubber
internally and externally.
No iron parts are exposed to the medium and the excellent rubber vulcanization
prevents creeping corrosion underneath the rubber.
Guides in the wedge and on the valve body ensure a uniform closure regardless of
Safe operation is ensured, as the guides prevent overloading of the stem.
The wedge has a large through bore and as there are no hollows in the core, stagnant
water or impurities cannot collect and cause contamination.
Spindle’s gaskets O-ring - “DRY THREAD” - replaceable under pressure.
Stainless steel spindle with rolled thread and bearing.
Total sufrace rubbered wedge with replaceable spindle nut.
Gate valve with full bore.
All parts are protected against corrosion.
Resilient seated gate valve to EN 1074-1 and 2 / EN 1171, with WRAS approved EPDM
Body and bonnet of GJS-500-7 (GGG-50). Wedge of ductile iron with fixed wedge nut,
fully vulcanized with EPDM rubber. Stem of stainless steel min. 13% Cr with rolled thread
and wedge stop ring.
Stem sealing with 4 O-rings in a nylon bearing, an EPDM rubber manchette, and a NBR
wiper ring. EPDM bonnet gasket in a groove, countersunk bonnet bolts encircled by the
bonnet gasket and sealed with hot melt. Sockets fitted with "Euro" sealing rings of EPDM
Epoxy coating to DIN 30677-2 and GSK guidelines - internally and externally.
The valve gate or closure member is typically in the form of a wedge made of cast iron material
so as to be sufficiently rugged so as to be suitable for high pressure and high flow applications.
In a resilient seat gate valve, the outer surface of the valve wedge is coated with an elastomeric
material so as to offer a bubble-tight seal even at elevated operating pressures.
The valve wedge is operated by turning a threaded stem so as to advance or retract the valve
wedge within the waterway of the valve housing.
Upon valve closure, the resilient material on the edge forms a bubble-tight seal with the internal
surface of the valve body. Dirt or other contamination in the valve operating system can lead to
incomplete sealing of the wedge or other malfunction.
Another object of the present invention is to provide a resilient seat gate valve having an
improved wedge operator system which readily overcomes the deleterious effects of contamination introduced either during construction or entrained within product carried to the valve.
These and other objects of the present invention which will become apparent from studying the
appended description and drawings are provided in a valve arrangement, that comprises a valve
housing that defines a water passageway and a valve seat within the valve passageway.
A valve wedge disposed within the housing passageway moves along a direction of operation
between a closed position in contact with the valve seat to block flow of water through the valve
passageway and an open position allowing flow of water through the valve passageway.
A pair of spaced apart tracks are disposed within the valve housing on either side of the wedge
and extend along the direction of operation. A pair of opposed wings carried on the valve wedge,
travel in each track. A valve stem coupled to the valve wedge moves the valve wedge in opposite reciprocating directions between valve open and valve closed positions.
Rollers are carried on the wings for rolling engagement with the tracks and scraper blades are
carried on the wings adjacent the rollers to scrape contamination from the tracks.
The tracks may be provided with or without a liner. If a wing is provided without rollers because of
a light loading application, for example, the track is preferably provided without a liner.
A light loading condition may arise, for example, at the upper end of a horizontally oriented
valve arrangement. However, under heavy loading conditions as, for example, at the bottom
end of a horizontally operated valve arrangement, it is preferred that the wings be provided
with load bearing rollers.
In this instance, it is also preferred that the track be provided with a liner of generally U-shaped
cross-section and made of a rugged material such as stainless steel.
Ductile cast iron
Ductile cast iron + EPDM
Ductile cast iron
2Cr13 S.S.x 20Cr13
Ductile cast iron
Ductile cast iron
protective surface finished by shot-blasting and the surface is smooth and neatness.
⊙ Flatting seat
Smooth continuous bore way without seating recess, it is not easy to get impurity pilled up.
Making the liquid straightway.
⊙ Treating with rubber
Both inner and outer are coated with advanced knowledge of rubber vulcanization then making
sure of the elasticity of rubber ,and make sure the exact geometry dimension. Rubber and ductile
cast iron valve hand together hardly. This can avoid fall-off due to long-term use.
⊙ Anti- corrosion
Both inner and outer are coated with non-toxic powder epoxy resin to strengthen the capacity of
Corrosion resisting and raise the quality
of water supply.
The older ductile iron valve is easy to rupture after being impacted by nonego. It can stop
rupture depend on the good mechanics capability of ductile iron .
⊙ Three “○” sealed ring
With the three “O” – rings, the leakage can be greatly reduced and the “O” – ring can be
replaced under this condition with pressure and without stopping water. The thrust axletree
reduces the frictional resistance and lowers the operational torque. And it can be switch seal
ring without opening and closing.
⊙ Rigid round body
The body is founded minutely, the rigid geometry size ensure inner sealing of valve without
⊙ Light weight
This body is made of ductile iron, it is 20%-30% lighter than the olds. Easily to fixing and
Applications : This valve widely applied in the liquid pipes for opening or closing fixing in such
water, sewage disposal, electric power, energetics pipe , chemical, shipping, energy sources etc.
⊙ American Standard
Design to ANSI/AWWA C509
Face to face dimension to ASME B16.10-2000(ISO 3 series)
Flange and drilling To SME/ANSI B16.42-1998
⊙ British Standard
Design to BS5163,BS5150
Face to face dimension to BS5163(ISO 3series,ISO19 series)
Flange and drilling To BS4504 part1(EN1092)
⊙ Germany Standard
Design to DIN3352
Face to face dimension to DIN3202(F4:ISO 14 series;F5: ISO 15 series)
Flange and drilling to BS EN1092
Applications: This valve widely applied in the liquid pipes for opening or closing fixing in such water,
sewage disposal, electric power, energetics pipe , chemical, shipping, energy sources etc.
