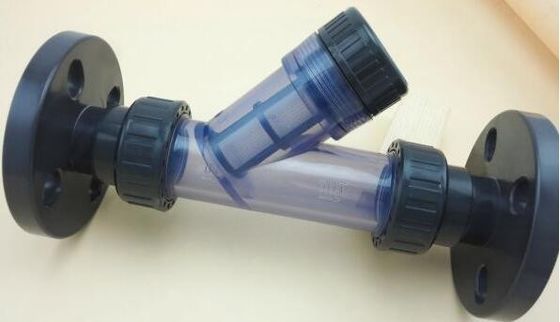

125 Psi Pvc Clear Y Water Meter Strainer 3 Dia , Socket Ends 20 Mesh Pvc Sreen

125 Psi Pvc Clear Y Water Meter Strainer 3 Dia , Socket Ends 20 Mesh Pvc Sreen
125 Psi Pvc Clear Y Water Meter Strainer 3 Dia , Socket Ends 20 Mesh Pvc Sreen 125 Psi Pvc Clear Y Water Meter Strainer 3 Dia , Socket Ends 20 Mesh Pvc Sreen

Large Image :  125 Psi Pvc Clear Y Water Meter Strainer 3 Dia , Socket Ends 20 Mesh Pvc Sreen

Product Details:
Place of Origin: Shanghai, China
Brand Name: OEM
Certification: WRAS/ ISO 9001
Model Number: SG41H
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: Usually packing by plywood case suit for sea delivery
Delivery Time: 1usually within 35 days after received your payment
Payment Terms: T/T advance or L/C at sight
Supply Ability: 90,000pcs per month
Detailed Product Description
Design Pressure.: PN10 , 16 Filter Mesh Size.: As Your Requirement
Design Specific Fluid Gravity.: Design Specific Fluid Gravity. Body: PVC
Filter/ Screen: SS 304 / SS 316 / Stainless Steel Size: DN 15~DN50
Medium: Water, Connect: Flange Or Socket
High Light:

pipeline strainers

,

industrial water strainers

125 Psi Pvc Clear Y Water Meter Strainer 3 Dia , Socket Ends 20 Mesh Pvc Sreen



flanged type pvc pipe y type strainer

Feature:

Size: Various

Medium:Water,steam,oil,strong base and so on

Suppplier: Factory Direct

Application: used in large diameter (LV) air,gas pipes road and water routes



Advantage:

Professional: We are professional manufacturer of valves.Ensure our valves is quality controlled and reliable.

Quality Control: We have been engaged in valve design for many year and can guarantee best quality

Experienced Sales Team: Our sales team is experienced, and they all know our product well.

About Price: we provide very reasonable and competitive price for you



Our Capacity:

1)Date of foundation: 1999

2)Total Revenue:Above $100 million

3)About QC: Excellence, quality first is our philosophy

4)Sales Market: Europeaa and other Overseas markets



125 Psi Pvc Clear Y Water Meter Strainer 3 Dia , Socket Ends 20 Mesh Pvc Sreen 0



Brief introduction:



The strainer may be used on all types of pipelines to collect granulated foreign substances and

contaminants collected. It can improve the clearance in the medium, and prolong the life of valves

and other equipments. It is suitable for wafer, petroleum and steam.





Technical Specification

- Nominal diameter:65~500mm

- Nominal pressure:1.0/1.6/2.5Mpa



Mail part & material

Body: gray cast iron, cast iron, ductile iron

Filter: stainless steel

O-ring: NBR





FEATURES
•  Iron strainers are complete with Flat Face (Series 125YF) or Raised Face (Series 250YF)
    flanges in accordance with ASME B16.1.


•  Strainer body meets applicable ASME Standard.


•  One piece cast body.


•  Strainers equipped with bolted cover flange that utilize a flat gasket seal.


•  Low pressure drop.


•  Upper and lower machined seats.


•  304 SS perforated screens are standard.


•  Drain/Blow-off connection furnished with plug as standard.


•  Generous screen area and properly proportioned straining chamber to minimize initial pressure

    drop while maximizing time between cleanings.


•  Compact end to end dimension.





STRAINER INSTALLATION INSTRUCTIONS
A . Ensure all machined surfaces are free of defects and that the inside of the
strainer is free of foreign objects.
B .  For horizontal pipelines, the strainer should be installed so that the drain
connection is pointed downwards.
C .  For flanged end strainers, the flange bolting should be tightened gradually in
a back and forth clockwise motion.
D .  Once installed, increase line pressure gradually and check for leakage around joints
E .  If the strainer is supplied with a start-up screen, monitor pressure drop carefully.


125 Psi Pvc Clear Y Water Meter Strainer 3 Dia , Socket Ends 20 Mesh Pvc Sreen 1





SIZE INCH 2 3 4 5 6 8 10 12 14 16 18
MM 50 65 80 100 130 150 200 250 300 350 400 450
A INCH 7.875  10  10.125  12.125  15.625  18.5  21.625  25.75  30  33.25  38.75  43.12
MM 200  254  257  308  397  470  549  654  759  846  984  1095
B INCH 5.25  6.5  7.5  13.125  15.75  18  18.5  22  28.625  30  31
MM 133  165  190  227  335  401  457  471  557  727  762  788
C INCH 2.5  10  12  14  16  18
MM 51  65  76  102  127  152  203  254  305  356  406  457
Weight kgs 13 16 21 30 43 60 90 140 175 392 627 1032
